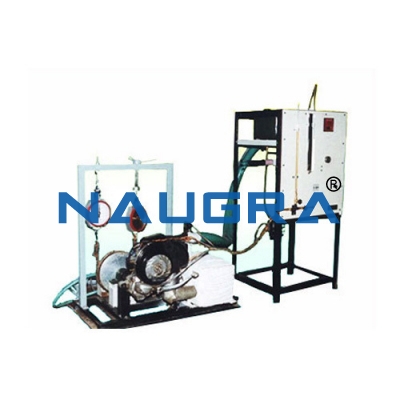

EFI Petrol Engine Test Bed

EFI Petrol Engine Test Bed

CAT NO: DIDACTICNAE080

EFI Petrol Engine Test Bed Description and Tender Specification:

EFI Petrol Engine Test Bed.
The test bed should be especially designed for teaching diagnosis, tune up, fault finding and trouble shooting. The engine should be mounted on a strong tubular steel frame, powder coated and come complete with instrumentation and accessories thus the unit should be ready to run. Test bed must have capability to connect to a modular dynamometer system for future upgradeability

Specifications:
The trainer should have the following requirements:
Modular frame
Should have strong heavy duty welded tubular, power coated frame, cross braced.
Rubber engine mounts should be incorporated into the frame, in order to reduce vibration.
Should be mounted on castor wheels with brake for mobility.
All wiring should be neatly routed next to frame members for operational safety and must have number identification codes on the cables.
Instrumentation and control system
Should have key ignition switch, operation lights, ampere meter, oil pressure gauge and water temperature gauge.
Throttle controller should be provided to set engine speed.
All electrical wiring and cabling should be wrap secured for protection from weather elements, and for safety aspects
Cooling system
Should have standard water radiator matched to engine size.
Should have a radiator guard for safety so as to prevent accidents from the radiator fan.
Electrical system
Should be provided with 12V battery with the alternator with a voltage regulator for recharging the battery.
The electrical system should be fully fused protected for all aspects of the wiring harness, engine and instrumentation.
Fuel System
The EFI system should come complete with all sensors and actuator as originally fitted to the engine such as injector system, mass air flow sensor, throttle body valve, fuel pressure regulator, temperature sensor, etc. the fuel system also includes approx. 10 liter fuel tank.
Air Intake & Exhaust system
Should be provided with a matched exhaust system including exhaust manifold with silencer (muffler). The air intake should also provide with an air cleaner for use during operation.
Engine
The engine Petrol Engine, E.F.I system, 4 stroke, 4 cylinder in-line, complete with the cooling system including the radiator, fuel system with fuel tank, lubrication system including oil filter, exhaust manifold with silencer (muffler), air filter and starter motor. The Engine should come with transmission.
Educational Objectives:
Basic Theory;
Fuel Injection
Electronic Control Unit
Gasoline Injection
Fuel Rail Assembly
Fuel Pressure Regulator
Fuel Return Circuit
Throttle Body Assembly
Air Inlet Ducts
Engine Sensor
Open and Close Loop
Automatic Transmission
Normal operation
Be familiarized with the engine be familiar normal operation the engine.
Ignition system
Be familiarized with the engine ignition system components.
Charging system
Be familiarized with the charging system.
Understand how charging system work
Cooling system
Be familiarized with the cooling system.
Understand how cooling system work
Engine warning light and self-diagnostic function
Should be able to use the Engine Self Diagnostic function to diagnose the engine problem by reading the diagnose code from the Engine warning light.
The test bed should be included with operation manuals and experiment manuals which includes step-by-step chapters with theoretical information and practical student experiments
