CAT NO: DIDACTICNULK2- -0087

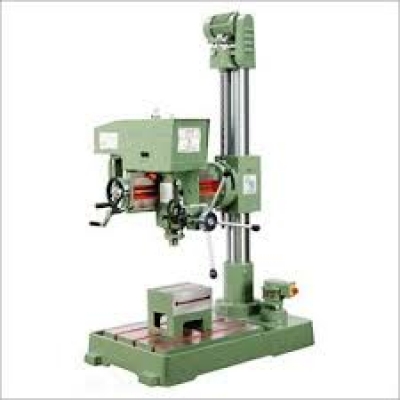

LATHE DRILLING MACHINE.
Type: Up-light type
Swing: 508mm
Capacity (Steel): Diameter – 16mm
Spindle: Taper – MT No.3
Speed – 150 to 4200 rpm (12 ranges)
Travel – 120mm
Distance between spindle Approx. 1100mm
to base:
Table: Square table with T-slot
Size: 470 x 420mm
Motor Output: 1 HP
Power Source: 220V 50Hz, Single phase
Accessories:
(1) Standard Accessories set
(2) Drill Chuck (Max. Dia. – 16mm (2 pcs)
(3) Machine vise – capacity 150mm (2 pcs)
(4) Arbor and Sleeve set (2 set)
(5) Operations manual
