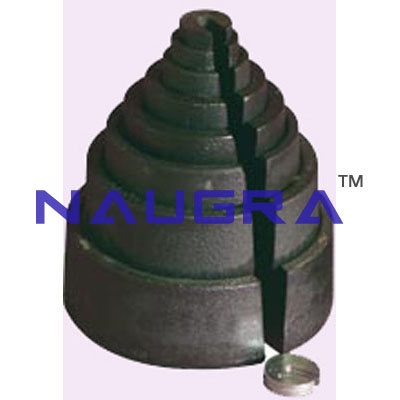

Newton Weights Laboratory Equipments Supplies

Newton Weights Laboratory Equipments Supplies

CAT NO: DIDACTICNLE-Export-061012

Newton Weights Laboratory Equipments Supplies Description and Tender Specification:

Features Load or Force Units. Simple Newton values. Stack able on Load Hangers. Individually Calibrated. 3 year warranty. Description The range of weights is based on the 1:2:5 system which makes it easy to create any load from 0.1 N to 200 N plus by increments of 0.1 N. All the weights are slotted so that they stack on a load hanger. The 0.1 and 0.2 N weights are in pressed steel, while all the rest are cast iron. The cast iron weights are individually corrected to be within ± 0.5 %. The weights are marked with their value to identify them   Code Net Weight Gross Weight Net Dimensions (Diam x thickness) Gross Volume (m³) 01 0.1 N / 0.01 kg 0.013 36 mm x 2 0.000004 02 0.2N / 0.02 kg 0.025 36 mm x 3 0.0000061 05 0.5 N / 0.05 kg 0.063 35 mm x 11 0.000020 1 1 N / 0.10 kg 0.125 45 mm x 11 0.000035 2 2 N / 0.20 kg 0.25 58 mm x 13 0.000070 5 5 N / 0.51 kg 0.63 82 mm x 15 0.00016 10 10 N /1.02 kg 1.25 108 mm x 17 0.0003 20 20 N / 2.04 kg 2.50 127 mm x 27 0.0006 50 50 N / 5.1 kg 6.3 159 mm x 42 0.002 100 100 N / 10.2 kg 12.5 184 mm x 60 0.003 200 200 N / 20.4 kg 24 260 mm x 60 0.007.
