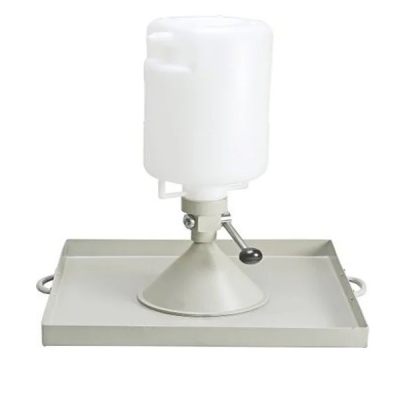

Sand Cone Density Apparatus

Sand Cone Density Apparatus

CAT NO: DIDACTICNMT0336

Sand Cone Density Apparatus Description and Tender Specification:

Sand Cone Density Apparatus.
Sand Cone Density Apparatus Use: Used to determine  in-place density of soils having maximum particle sizes up to 51mm using test hole volumes of approximately 2.8L
Standard:
ASTM D1556, AASHTO T191
Specifications:
3.8L threaded plastic jar with detachable brass double cone fitting. The brass cone threaded on one end, flanged to 165mm (6-1/2in) on the other, with a brass cylindrical valve of 12.7mm (1/2in) dia. orifice between ends.
Valve with stops to prevent rotating past completely open or closed positions.
Replacement plastic jar
Density Plates 305x305mm (12x12in) aluminium alloy with 12.7mm (1/2in) high edge walls.
Poly sample bags, qty. 100,
25°-125°F pocket dial thermometer,
Accessories
Bristle brush
1in steel chisel
Stainless steel spoon
Rubber mallet.
