CAT NO: DIDACTICNLE-Export-081138

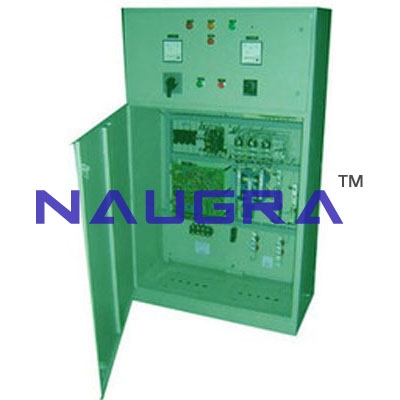

Variable DC Power Source With Power Distribution Panel.
Performance specification for static convverter
1) Scope :- our specification covers design, manufacturing, inspection, testing, supply of the drive.
2) Input system :-
Normal voltage : 415v +/- 10%
No of phases : three phase, four wire
Frequency : 50hz +/- 2%
Fault level : 20ka rms at 415 v.
Neutral earth : solidly earthed.
3) Technical particulars :-
3. 1) Output voltage.
Armature : 440v dc max.
Field : 220v dc
DC motor blower : 415v +/-10%, 50hz +/-2%, 3ph.
3. 2) Output current.
armature :
field :
3. 3) speed control.
3. 4) Accuracy of speed control. +/-2% under arm. voltage feedback.
3. 5) Soft start. acceleration and deceleration control from 5sec to 30sec adjustable.
3. 6) Type of control : tacho/arm. Voltage feedback.
3. 7) Direction of rotation. :
3. 8) Braking.
3. 9) Type of cooling : forced air cooling
4) Converter modules.
It consists of the following modules.
Input module
Thyristor module
Regulation module
Output module
Excitation module
Indicating and operating module
Protection module
4. A input module
The incoming 415v 3ph four wire supply will be brought into this module. It consists of -
Tripple pole and neutral incoming ac heavy duty isolator switch.
Three nos. Hrc fuse link for mains.
Main contactor
Line surge suppressor consisting of capacitors, resistors & movs.
4. B thyristor module
iI will consist of three phase, full wave, fully controlled thyristor bridge assembly comprising of -
Six nos. Derated thyristors each mounted on aluminium heat sinks
RC snubber circuit for power semi-conductors.
Moves to protect thyristors against spikes.
Pulse transformers to isolate the control circuit from power circuit.
Forced cooling arrangement.
4. C regulation module
It
consists of modular glass-epoxy based printed circuit boards of height
4u with plug-in type gold plated connectors for easy replacement and
servicing.
These are green masked, legend printed PCB housed in a card frame and interconnected by a mother PC board.
The different blocks are as under.
Power supply and regulator
Ramp generator with adjustable accn. Decn. Circuit.
Voltage and current control amplifier which controls the output voltage with adjustable voltage and current limiting.
Pulse amplifier feeding the pulse transformer primary and the gate trigger circuits.
Tripping circuit for single phasing, phase sequence, under voltage, field failure and electronic overload.
