Electrical Workbench

Electrical Workbench, Electrical Workbench Manufacturers in India, Electrical Workbench Exporters in India, Electrical Workbench Suppliers in India, Electrical Workbench Leading Manufacturers in Ambala India, Electrical Workbench for School Didactic Lab and Science School Didactic Lab Tenders from Ambala India

Digital Electronic Trainer

DC power supply +5V +/-0.25v/500mA - Clock Generators - Logic level inputs - Sockets for Digital IC circuits....

Product Code: DIDACTICLABAAE 1
(Digital Electronic Trainer)

http://www.didacticlabequipments.com/digital-electronic-trainer



Logic Training Board on COUNTERS & shift Registers

Electronics + 5V D.Cc at 1Amp, IC Regulated Power supply Internally connecated 02. Five, J-K master slave flip-flops with preset and clear arrangement Six, 2- input NAND gates. Four, 4-input NAND-OR gates. Three, 4-input AND-OR gates. Two inverters (NOT gates). A4-bit binary counter to demonstrate the basic principle of frequency measurement. A square wave oscillator of ferquency 10 Hz, 1 KHz and 10 KHz with coarse and fine variations, demon Strate the basic principle of frequency division. Completely programmable palnel to make any type of counter of shift register. Two pulser switches of clear and clock arrangement . One mono pulser to give a sec pulse. Two,7-segment displays to monitor the output in decimal coad. LEDs for visual indication of output status of each flif-flop. Adequate no. of other Electronic Components. Mains ON/OFF switch , fuse and jewel light. ....

Product Code: DIDACTICLABAAE 2
(Logic Training Board on COUNTERS & shift Registers)

http://www.didacticlabequipments.com/logic-training-board-on-counters-shift-registers



Analogus to Digital Converter

Omega electronics Model: OMEGA TYPE LTB-812 + 5V D.C. at 250mA, IC Regulated power supply internally connecated. - 5V D.C. at 50mA, IC regulated power supply internally connnected . + 10V D.C. at 50mA ,IC Regulated power supply internally connected. 0-15V D.C. at 50mA, continusly variable power supply . D.C. Volmeter , 65mm continusly dial to read 0-15V. Voltage comparator Quad 2 -input NOR gate. Qual 2-input AND gate. Qual 4-input EX-OR gate. BCD-to-7 Segment Decoder/Driver. Dual J-K Flip-Flop. Bit Binary Ripple Counter. Timer. Continuous monitoring of analog signals on a voltmeter and of digital on 7 segment display. Seven LEDs to display the of vatious important points. ....

Product Code: DIDACTICLABAae 3
(Analogus to Digital Converter )

http://www.didacticlabequipments.com/analogus-to-digital-converter



Digital to Analog Converter module

Manuf:National Instrument Model:NI SCXI-1124 Software-programmable ranges 12-bit resolution Connect channels in series for output voltages up ±60 V per module 250 Vrms working isolation per channel NI-DAQmx measurement services software to simplift configuration and measurement....

Product Code: DIDACTICLABAAE 4
(Digital to Analog Converter module)

http://www.didacticlabequipments.com/digital-to-analog-converter-module



DL-1049 Digital Lab Station

The board consists of the following built -in parts. +5V D.C. at 200mA, IC Regulated Power Supply internally connected. Nine, 3-input AND gates whose outputs is connected to an inverter (NOT gate) to give 3-input NAND gates. A clock generator with a repetition frequecy of 5 Hz. Two lamps (LEDs) driver circuits each of which individually drivers a lamp (LED). Switches ofr logic selecation. Lamps (LEDs) for visual indication of status.....

Product Code: DIDACTICLABAAE 5
(DL-1049 Digital Lab Station)

http://www.didacticlabequipments.com/dl-1049-digital-lab-station

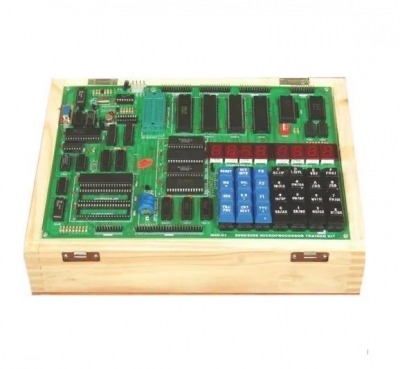

8085 Microprocessor Trainer

Intel 8085A CPU @ 6.144 MHz Clock Speed. RAM : 8KB expandable to 32KB, Jumper selectable. EPROM : 8KB expandable to 32KB, Jumper selectable. 3 Channel 16 bit counter / timer terminated in a 10 Pin Connector. 48 TTL I/O Lines, terminated at 26 pin FRC connector. RS232C Compatible serial Port terminated in a 9 Pin "D" Male Connector. One VXT Bus (50 Pin FRC Connector) for interfacing. Interrupts, SID and SOD are terminated in a separate 5 Pin Connector.....

Product Code: DIDACTICLABAAE 6
(8085 Microprocessor Trainer)

http://www.didacticlabequipments.com/8085-microprocessor-trainer



OEJ-86 (8086 Microprocessor Trainer)

Manuf: Omega Electronics Model: OEJ-86 (8086 Microprocessor Trainer) 8086/8088 CPU operating at 2.5/5MHz 8086 Processor can be replaced by 8088 Processor On-board socket provided to facilitate the use of 87 Co-processor and 8089 I/O Processor 16K bytes of RAM using two nos. of 6264 with battery Backup expandale up to 256KB. 16K bytes of powerful monitor EPROM using two nos. of 27512 72 I/O lines through 3 nos. of 8255 brought at 26 Pins FRC Connector to interface with IC-XX Serise 16 bit Timer/Counter through 8253 brought out at 20 Pins FRC Connector. RS-232C interface using 8251 brought out at 9 Pins D-Type Connector. On-board Interrupt controller using 8259 brought out at 20 Pins FRC Connector. 20x2 Alphanumeric LCD Display with Backlite. 101 ASCII Keyboard interface using 89C2051 operating @ 12MHz Powerfull Commands like Examine/Edit Memory, Examine/Edit Register, Single stepping, Execution, Block Move, Break Point can be used throught ASCII keyboard. On-board Single Line Assembler / Disassembler. Facility for Downloading/Uploading files from/to PC. All address, data & control lines are available on KXT Bus 50 Pin FRC Connector to interface with SC-XX Serise. All ICS are Mounted on IC Sockets. Bare board Tested Glass Epoxy SMOBC PCB is used. In-Buitl Power Supply of +5V/2A, ±12V/250mA Attractive Wooden enclosures of Light weight Australian Pine Wood. Users Manual with sample programs. OPTIONAL PRINTER INTERFACE to interface with DOT MATRIX Printer Real Time Clock using RTC6242 PROVISION FOR EPROM PROGRAMMER FOR 2764 / 27128 / 27256....

Product Code: DIDACTICLABAAE 7
(OEJ-86 (8086 Microprocessor Trainer))

http://www.didacticlabequipments.com/oej-86-8086-microprocessor-trainer



OEJ-51 (8051 Microcontroller Trainer)

Electronics Hardware Features: MCU: ATMEL 89S52 @11.0592MHz, 40 pin FIR Package 8051-compatible microcontroller chips, Memory: 32kB RAM, 32KB monitor ROM 250bytes on-chip RAM, GPIO: 8255 PPI, P1, P3, Display: 16x2 Text LCD, Keypad: 28-key, 16-HEX key, 12-functio key, ADC: LTC1298, MCP3202, 2-channel 12-bit resolution, RTC: DS1307 I2C interface real time clock with +3V Lithium Battery EEPROM: 32kB 24LC256, Temperature sensor: DS1820, RELAY: 10A 250VAC relay with NO-C-NC terminal, Serial port: 9600 RS232 and RS485, Optional keyboard: PS2 interface connector. The monitor software features: Enter hex code directly using the 16-key hex key, Sinle step running with user registers display, Run user code full speed, Display code and data memory, Offset byte calculation for relative addressing mode, Insert byte and delete byte, Clear code memory, Quick home location key....

Product Code: DIDACTICLABAAE 8
(OEJ-51 (8051 Microcontroller Trainer))

http://www.didacticlabequipments.com/oej-51-8051-microcontroller-trainer



IF-004 Digital to Analog Converter Module

DAC488HR/4 MEASUREMENT COMPUTING USA....

Product Code: DIDACTICLABAAE 9
(IF-004 Digital to Analog Converter Module)

http://www.didacticlabequipments.com/if-004-digital-to-analog-converter-module



Power Project Board

Manuf: Omega Electronics Model: POWER PROJECT BOARD (BBS104) Three terminal strips Tie points 1920 Four distribution strips Tie points 400 (total of 2320 tie/contact points) - Four terminals (Binding Posts) and additional general purpose builit in power supplies ....

Product Code: DIDACTICLABAAE 10
(Power Project Board)

http://www.didacticlabequipments.com/power-project-board



ET-1038 Electricity Trainer

DC Power Supply : 5V. 200mA DC power Supply : 12V. 200mA AC power Supply : 6V, 1A Relay : 12V Galvanometer : 30-0-30 Galvanometer Resistance : 80Ohm Light Bulbs (3 Nos.) : 6V Potentiometers (3 Nos.) 25 Ohm. 1W 10K Ohm, 1W Switch : 1 Pole, 2 Way Toggle Type Core TYpes : E, I, U Main Supply : 230V AC 50Hz * Dimension : W 340 x H 110 x D 210 COILS No. of Turn Qty. SWG Maximum Current (Amp.) Inductance (Approx) 200 1 21 1.000 85 mH 400 2 23 0.542 3.25 mH 800 1 27 0.253 13.1 mH 1600 1 31 0.126 52.3 mH 3200 1 36 0.050 220mH ACCESSORIES Component Box-: Resistor-40 Capacitor-04 Transistors-02 Diodes-02 Mains Lead-01 Magnetic Compass-01 Bar Magnet-01 Set of Coils-06 E,I,U Core Multimeter-01 Screw Driver-01 Connection Patch Cords-25 OTHER APPARTUS REQUIRED * Cathode Ray Oscilloscope 20MHz. ....

Product Code: DIDACTICLABAAE 11
(ET-1038 Electricity Trainer)

http://www.didacticlabequipments.com/et-1038-electricity-trainer



Electricity Lab

Manuf : Omega Electronics Model: ET-1039: Electricity Lab....

Product Code: DIDACTICLABAAE 12
(Electricity Lab)

http://www.didacticlabequipments.com/electricity-lab



Discrete Component Trainer

Built-in short circuit protected power supplies +5V, +12V, and variable 0-20V & assorted components resistors, capacitors, inductors, diodes, Zener diode, varicapdiode, SCR, Diac, Triac, VDR, LDR, Photo diode, LED's, transistors, FET's, UJT's, matched transistor pair, potentiometers, transformer, speaker, relay, etc., all terminated on high quality banan sockets. A meter and switches & indicators for setting and monitoring logic levels. A comprehensive manual....

Product Code: DIDACTICLABAAE 13
(Discrete Component Trainer)

http://www.didacticlabequipments.com/discrete-component-trainer

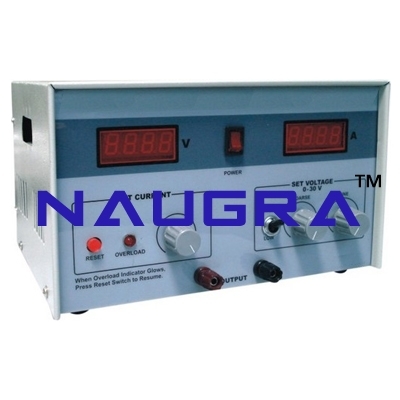

Regulated Power Supplies 5v dc

5v regulated supply Digi-key USA....

Product Code: DIDACTICLABAAE 14
(Regulated Power Supplies 5v dc)

http://www.didacticlabequipments.com/regulated-power-supplies-5v-dc

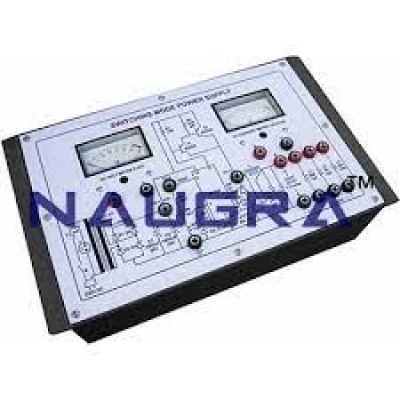

Switching mode power supply (SMPS)

Manuf: Omega Electronics Model: OMEGA TYPRE ETB-107 Complete SMPS circuit based on IC-723, having output 5V D.C. at 1.5 Amp. Output voltage 0-30V Output Current 0-2AMPs Input voltage, 140-260VAC Ripple voltage, 50-80mVDC Efficency, 92% Output Load Regulation, 0.10 to 0.30%....

Product Code: DIDACTICLABAAE 15
(Switching mode power supply (SMPS))

http://www.didacticlabequipments.com/switching-mode-power-supply-smps

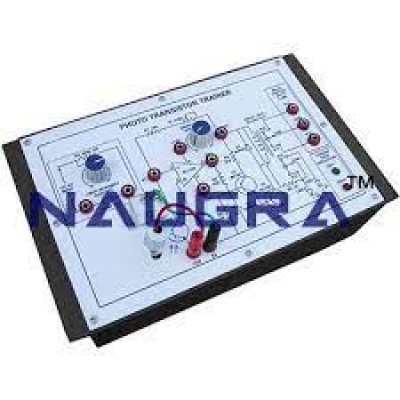

LDR / PHOTO-TRANSISTOR TRAINER KIT

LDR or photo-Transistor for light sensing. Output available on 2mm Banana sockets ofr Monitoring Relay output for. Alarm indication on Board Relay provided to explain the funcation of LDR Onboard instrumentation Amplifier Block Description screen printed or glassy Facility to Interface with PC (Optional). Facility to Interface with 8085/86/51 All interconnections made using 2mm bababa Patch cords. Test points provided to analyze signals at various points. All ICS mounted on IC Sockets. Brae board Tested Glass Epoxy SMOBC PCB used. In-Built power supply of +5V/1.5A,±12V/250mA with power ON indication set of 2mm prach cords for interconnecations User Maunal sample exprimental program ....

Product Code: DIDACTICLABAAE 16
(LDR / PHOTO-TRANSISTOR TRAINER KIT)

http://www.didacticlabequipments.com/ldr-photo-transistor-trainer-kit

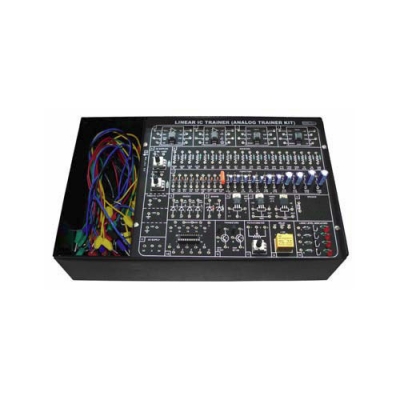

Linear IC Trainer

5 LED's are provided to indicate the statur/outputs of an experiment. Drivers for driving the LED's All the 5 inputs of the terminated at Spring Termination for easy wiring of any experimental setup. Input switche 5 SPDT Switches provided as logic inputs. 5 LED's provided to display the status of the switches. One end of each SPDT Switch terminated at a Spring Termination for easy wiring for a test circuit. 2 DPDT switches provided with LED induction to display the status of the switches. Each end of switches terminated at Spring Terminations. Voltage Source Amplifire: One Adjustable Positive Voltage regulator using LM317 & one adjustable Negative Voltage Regulator using LM337 provided. One Potentio-meter provided to select the output voltage range. Outputs terminated at Spring Termination. Adjustable output voltage from 1.5V to 15V with variation of 0.5V division. Function Generator: Provision for generating Sine, Square & Triangle Waveforms. Output of the waveforms terminated at Spring Termination. Amplitude & Frequency of the wave from varied by using potentio-meters. Special features: One 8 Pin Machine Socket provided to test the 8 Pin Op-amp lcs. One Op-amp 741 provided to study the basic principles of Op-amp. One Solderless Bread Board provided for easy wiring of any experimental setup. 3 Potentio-meters with values of 1K, 10K, 100K ohm provided at Spring Termination for using variable resistances in any experimental setup. Power Supply: [Built In] Input : 220-240V A.C Output : +5 V/1A, ±15/500 mA....

Product Code: DIDACTICLABAAE 17
(Linear IC Trainer)

http://www.didacticlabequipments.com/linear-ic-trainer



OP AMP Trainer Kit

±15V, ±12 and +5V Fixed Dc power supply DC 1.5 to 10V, -1.5 to -10V variable power supply IC 74 Op-Amp stage 555 IC Stage LM331 IC stage 16 Pin ZIF socket Resistor bank Capacitor bank Potentiometers Diodes Zener diodes NPN Transistor N-channel MOSFET LED Bread Board....

Product Code: DIDACTICLABAAE 18
(OP AMP Trainer Kit)

http://www.didacticlabequipments.com/op-amp-trainer-kit



Power Electronics Lab

Manuf: Omega Electronics Output Voltage: 18v to 0v to -18v at 0.5A 12v to 0v to -12v at 0.5A DC output +12v at 0.5A +5 at 0.5A Analogue meters Dual-scale ACV: 0-110V-220V Dual-scale ACA: 0-100mA-1A, Dual-scale DCV: 0-10-20V, Dual-scale DCA: 0-100mA-1A Motor 240ACV Accessories Power lead, 2mm connecting leads, storage cabinet and user manual. Rack frame with oscilloscope tray and oscilloscope. Power supply 110/220V AC ±10% 50/60Hz.....

Product Code: DIDACTICLABAAE 19
(Power Electronics Lab)

http://www.didacticlabequipments.com/power-electronics-lab



SCR Application Trainer

Manufacture:Omega Electronics Three I.C. regulated D.C. power supplies internally connected. A.C. supply. Isolation Transformer. Timer I.C. Operational amplifier I.C. Quad dual input NAND gate I.C. Pulse Transformer. Battery. D.C. Relay. OVEN with Power Supply. Adequate no. of electronic components to be used in various experiments i.e. Pot 5Nos., Push to on switch 2 Nos., Push to offswitch, Buzzer, Bulb 230V 40watt, Bulb 12V 5watt, LED 2Nos., Diode 4 Nos., Diac, Zener 2Nos., LDR, Thermistor, SCR 4 Nos., Triac, UT 2 Nos., Transistors 3 Nos. etc. Main ON/OFF switch, fuse and jewel light.* The Unit is operative on 230V, ±10% at 50Hz A.C. mains.....

Product Code: DIDACTICLABAAE 20
(SCR Application Trainer)

http://www.didacticlabequipments.com/scr-application-trainer



CPE- Wall Charts Power Electronics Set

Power electronics at a glance Fammily of thyristors Application of various power electronics devices Rectifying circuits SCR and MCT MOSFET and IGBT Diac and Triac UJT and GTO Power supplies (smps) Chopper and inverters....

Product Code: DIDACTICLABAAE 21
(CPE- Wall Charts Power Electronics Set)

http://www.didacticlabequipments.com/cpe-wall-charts-power-electronics-set



Microprocessor and PC Lab controlling speed of DC motor Interface Module

12V DC operated motor. Optical sensor to detect the current position of the shaft of the motor. Built-in signal conditioners, power drivers, and power supply. The experimental module should have an interface to all Microproccesor trainer, Micro Control trainers or IBM PC Add - on card Model: IBR-1.....

Product Code: DIDACTICLABAAE 22
(Microprocessor and PC Lab controlling speed of DC motor Interface Module)

http://www.didacticlabequipments.com/microprocessor-and-pc-lab-controlling-speed-of-dc-motor-interface-module

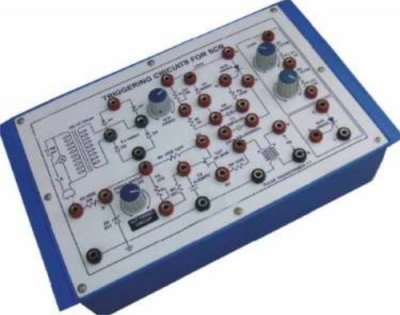

Thyristor triggering trainer

Uni-Junction Transistor - 1 No. Thyristor - 1 No. An average ON-State current of 10A @ 180° conduction angle. Cirtical rate of rise of on-state current 50 A/sec. Peak gate current with 4A. Average gate power dissipation 1 Watt. Maximum peak reverse gate voltage 5V. Threshold voltage 0.77V. Average gate power dissipation 1Watt. Pilse transformer with two Outputs. Potentiometers: Two numbers of suitable potentiometers Buffer transistor: 12 AC transformer for waveform copmarison. All assenbled in an elegant FRP cabinet. ....

Product Code: DIDACTICLABAAE 23
(Thyristor triggering trainer)

http://www.didacticlabequipments.com/thyristor-triggering-trainer

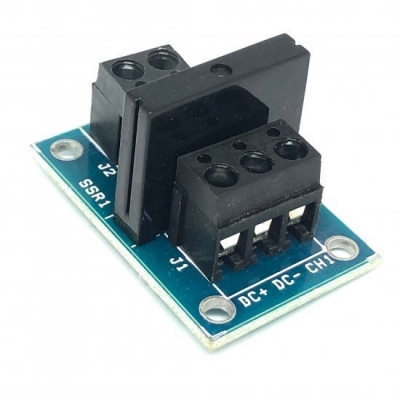

Solid State Relay Module

Two solid state relay Each relay operates @ 230V AC @ 0.2A. Input TTL compatiable. Two 230V AC sockets, provided for connecting devices. Spark quenching electronics incorporated. Requires external power supply of 5V DC @ 250mA.....

Product Code: DIDACTICLABAAE 24
(Solid State Relay Module)

http://www.didacticlabequipments.com/solid-state-relay-module



Stepper Motor Inerface Module

Manuf: Omega Electronics One 3kg/cm2 Stepper motor supplied. Built -in power supply. Interface elecronic included.....

Product Code: DIDACTICLABAAE 25
(Stepper Motor Inerface Module)

http://www.didacticlabequipments.com/stepper-motor-inerface-module



Digital IC Tester

Input : 16 Logic input toggle switches. One push button for mono luse. Outputs: 16 Logic output indicator LED display. 7 Segment display Software De-bounced mono pluse generator. Microcontroller based TTL Clock generator of 1 Hz,10Hz, 100Hz, 1KHz, 10KHz, 20KHz. DC power supply tapings. (short circuit protected & IC Regulated) 0, GEN, +5V, +12V, -12V Other features. ZIF sockets. 16 pin ZIF-6Nos, 28pin ZIF-1 Nos. Facility to check continuty of connecting wires. Cabinet with 48026cm X 48.26cm (19" X 19") size with power cated with good aesthetic. Input power with fuse protected - 220V-240V, 50Hz AC....

Product Code: DIDACTICLABAAE 26
(Digital IC Tester )

http://www.didacticlabequipments.com/digital-ic-tester-11093



GIM-001 Computer interfacing

Manuf: Omega Electronic Model: CIM-001 computer Interfacing board. Optically isolated from the computer. 16 Optically isolated digital connecations. 9 analogus outputs of which one is high precision and 4 analogue inputs printer bypass connector on board. Digiotalo otputs . Opotocouler , open collector output -500mA- max, 30VDC. Digital inputs. Optocopler inputs :5V/5mA, 20V/40mA. Analogue outputs. 8 output DAC1 to DAC8, Resolutaion: 64 steps. minimum output voltage 0.1V at 2mA. Maximum output voltage 11.5V adjustable at 2mA. Resolution per step from 0.1V to 11.5V: 160mV +/-90mV.....

Product Code: DIDACTICLABAAE 27
(GIM-001 Computer interfacing )

http://www.didacticlabequipments.com/gim-001-computer-interfacing



DB-028 Mobile phone Trainer

Manuf: Omega Electronics Cellular system :EGSM/GSM 900. Rx Frequency Band : EGSM 925, 960MHz. GSM 900,935, 960 MHz. Tx Frequency Band : EGSM 880, 890 MHz GSM 900,890,915MHz Output power : +5V, +3dBm/32mW,2W. Channel Spacing : 200 KHz. Antennla : Loop type, 50W. Display : 48 Pixels. On Board sections : Antenna, Keypad, SIM, Charging Citcuit, CLock, User interface such as Buzzer, Vibrator, LEDs. No.of fest points : 54. No of witched gault : 20. Features that can be set :Screen savers, Ring tones, Logos, SMS etc. Accessories included : Battery, Mains cord, Manual, Handsx Free Kit. Power Requirement : 220V±10%50 Hz.Power consumption : 3.6Watts (Approx). Fuse : 1.5 amps. ....

Product Code: DIDACTICLABAAE28
(DB-028 Mobile phone Trainer)

http://www.didacticlabequipments.com/db-028-mobile-phone-trainer



DB-030 AM/FM Redio Trainer

AM/FM Radio Trainer. (1) AM RADIO SECTION: .Tuning Range : 520KHz-1620KHZ. . IF Frquency : 455 KHz. . Tracking : +-3db from 700 KHZ tio 1400KHz. . 10db Signal to Noice at 200 microvolt typical. (2) FM RADIO SECTION: . Tuning Range :88MHz-108MHz. . IF Frequency : 10.7 MHz. . Tracking :+-5db from 90MHz to 106MHz. . DETECTOR: Uses ratio detector and full time auto frequency control. . 10db sigmal to Noise at 12 mocrovolt typical. (3) NINE SECTIONS: . Audio Amplifier Circuit. . AM Detector Circuit. . AM IF Circuit. . AM Amplifier Circuit. . AM Mixer and oscillator circuit. . FM Detector Circuit. . First FM IF AMPLIFIER Circuit. . Second FM IF AMPLIFIER Circuit. . FM Radio Frequency Stages. (4) OTHER: . Test points : 15 Numbered as TP1 to TP15. . Trainer is complete with : Ear phone & Operational/Instucation manual. . Loud speaker on panel. . OPERATIVE VOLTAGE : 9Volt DC Battery (Provided). . 9V DC Power Adaptor (Provided). *Weight :2 Kg. (Approx.) * Dimension : W 308 x H 152 x D 30....

Product Code: DIDACTICLABAAE29
(DB-030 AM/FM Redio Trainer)

http://www.didacticlabequipments.com/db-030-am-fm-redio-trainer



DB-029 CD/VCD Trainer

POWER SUPPLY : 230V AC,50Hz, with cathode Ray Oscilloscope 20 Mhz. Fanction Switches : play/ puses, Forward, Rewind, stop, progaram select/ Repeat, skiip Forward , skip Reverse, Open/ Close, Tracks select. Display : program, Time and track status display. ferquency Range : 5-20000Hz. T.V. system : PAL and NTSC. Audio Output : 20W PMPO (100W X 2 channels). Speakers : 2 Nos. .Modulation : EFM. Quantization : 16 bit Linear. CD Formet : Audio CD, Video CD,k MP3 CD can played. Output sockets: Audi out, video Out, RF out (Channel 2). Remote controls: play/ paise ,Forward , Rewind ,stop program select/ Repeat, skip Forward, skip reverse , open / Close. Tracks select. Sampling Frequency : 44.1KHz. Distoration : 5 to 10% for expanded P.C.B. Contols : Bass, Treble, and volume. TEst points : 15 Switch faults : 17. Staandred accessories : 1.video CD-1Nos. Speakers-2 Nos. A manual having practical details-1No. Audio/video connectro with lead Remote control * Weight : 6 kg. (approx). * Dimension : W 412 X H 150 X D 310....

Product Code: DIDACTICLABAAE 30
(DB-029 CD/VCD Trainer )

http://www.didacticlabequipments.com/db-029-cd-vcd-trainer



ST-2651 Color Television trainer

Manufacturer : omega Standred: CCIR-B-PAL-G,625 Lines Channels: 230. 2-4VHP: l(VL),512HPlll (VH)12-100:BANDIV&V,. Else : SBAND&HYPERBAND. Picture tube size : 36 cms, Digonal. RF Input Impedance : 75W Cricuit Blocks : System control circuit, Video IF, sound, Tuner secation, Horizontal Output, vertical Oscillator,vertical output,videos&chroma section, power supply , AVsections. ON Screen Display to set: volume Brightess, contrast colour channel&Band selecation Tuning. Panel control : OM/OF switch, stand by menuvol+/-prog +/- Remote control Funcation : Volume ,Brightness ,stand by, colour , contrast, Selecation, Audio mute, AVmode, Zoom Swao, Scan Child Lock. PCB Size : 475 X 75mm. No. Pf Faults : 21. No. of test points: 55. I.F. Frequency : Video -38.*MHZ,Audio -33.4MHz. Speaker Size : 50 X 125mm. Accellerating Potential : 24KVmzx. oprerating voltage for EHT: 110V. Mains Supply : 230V±15%,60Hz on request. power consumtion : 75VA(Approx). Dimensions : W590 X D490 X H525. Weight : 19kg. (Approx).....

Product Code: DIDACTICLABAAE 31
(ST-2651 Color Television trainer)

http://www.didacticlabequipments.com/st-2651-color-television-trainer



DB-031 Multimedia Computer Trainer

(A) SYSTEM: C.P.U with fan : Intel Celeron Mother board : Mercury (v2.0, P1865D7). Memory (RAM) : 256 MB DDR RAM. Disply adaptor card : Built-in-motherboard. Hard Disk : 80 GB-Seagate. Floppy disk drive : 1.44 MB. MOnitor : 15" Color SVGA-LG / SAMSUNG. Key board : Multimedia Key noard (I-ball / EQ.) Mouse : Optical mouse with pad (I-ball / EQ.) SMPS : 450 Watts (ATX). DVD Rom/Writee : LG / SAMSUNG Sound card : Built-in motherboard. TV turne card : PCI with Rfin, Videoin, s-vidoe in Video Camara ; Web cam/Easy tune Modem ; 56.6 kbps. Ethernet : Built-in-moyhernoard. (B) TRAINIG PACKAGE:- Trainer PCB board with fault creating facilities. Training package with experiments Software CD and manual. (C) OPTIONAL:- TV tuner card. LIST OF ACCESSORIE Mother board driver CD with cover 1 No. Bootable CD with cover 1 No. Mains Floopy 2 No. Mains cord detachable (for monitor and trainer) 2 No. Trainer Key 1 No. Operating Manual 1 No. Web Camara (MIcro soft cam VX-1000 / EQ.) 1No.....

Product Code: DIDACTICLABAAE 32
(DB-031 Multimedia Computer Trainer)

http://www.didacticlabequipments.com/db-031-multimedia-computer-trainer



LAN Trainer

Manuf:Omega Elctronics Model: OMEGA TYPE LAN - 1011 LAN HARDWARE 10/100 Mbps Ethernet Card : 3 Nos. UPT Straight cable with Connectors : 5 mtr.x 3 + ½ mtr.x3 Coaxial Cable with connectors and termination : 10mtr. Straight Parallel port cables : 2 Nos. Straight Serial port cables : 2 Nos. 10Mbps 8 port Hub : 2 NOs. Set of patch cords for the Onboard cabling setup Cable fabrication kit : 8 RJ 5 male connectors, crimping tool & 10 mtr. UTP cables....

Product Code: DIDACTICLABAAE 33
(LAN Trainer)

http://www.didacticlabequipments.com/lan-trainer

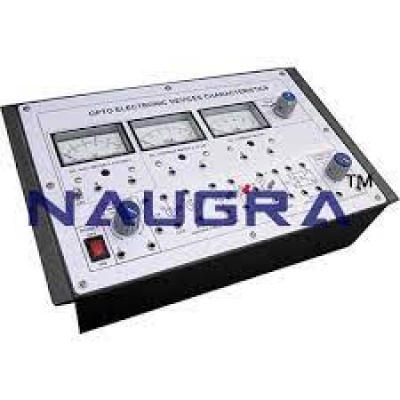

ETB-244 Optoelectronic devices characteristics

±12V D.C. at 200mA power supply Thermistor NTC & PTC on Board. Photo Diode Photo Transistor LDR. Two LED With Suitable Resistor For Visual Indication. 12V Relay for Multi Poeration. 1C/O. Two IC OP Amp (LM-741). The Timer IC (NE-555). Three Transistor NPN (SL-100 & BC-107,) and PNP (SK-100). Five Potentiometers. (100E,1K,10K,47K,1M). Two Pulser Switch. One Pulser Switch with lock Feature. 19 Resistor of Different Values. 12 Capacitor of Diffrent Values and Zener Diode. 3 Switching Diode. Mains ON/OFF Switch, fuse and Neon Indicators. The unit is operating on 230V ±10% at 50Hz A.C. Mains.....

Product Code: DIDACTICLABAAE 34
(ETB-244 Optoelectronic devices characteristics)

http://www.didacticlabequipments.com/etb-244-optoelectronic-devices-characteristics



UPS APC650VA

....

Product Code: DIDACTICLABAAE 35
(UPS APC650VA)

http://www.didacticlabequipments.com/ups-apc650va

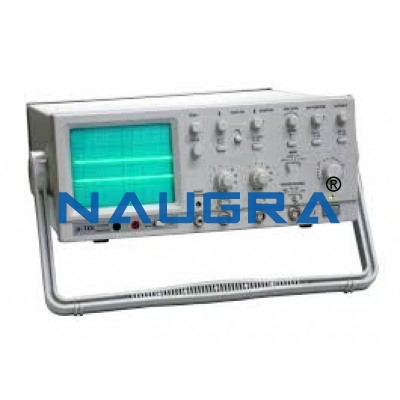

Cathode Ray Oscilloscope

Tds 1000 Analog bandwidth 40MHZ - 100MHZ, sample rate 500Ms/s- 1Gs/s, record leanght 2.5K points, analog channels 2....

Product Code: DIDACTICLABAAE 36
(Cathode Ray Oscilloscope)

http://www.didacticlabequipments.com/cathode-ray-oscilloscope-11103

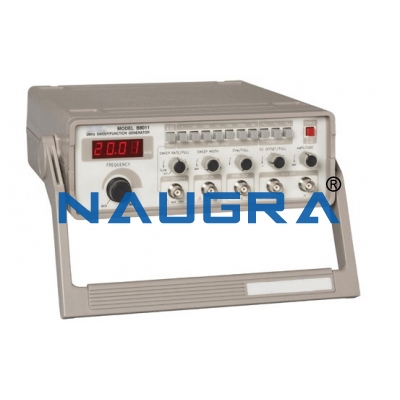

Function signal Generator

AFC 300 ANALOG CHANNEL 1-2, sanple rate 250Ms/s- 2Gs/s, record length 1285 points, vertical resolution 14 bits, output frequency 10 MHZ-240MHZ.....

Product Code: DIDACTICLABAAE 37
(Function signal Generator)

http://www.didacticlabequipments.com/function-signal-generator



DMM

Model DMM 4020, digital resolution 5.5, measurement :V, A, ohms, frequency, continuity, diode test, voltage accuracy reading + 0.0004% range.....

Product Code: DIDACTICLABAAE 38
(DMM )

http://www.didacticlabequipments.com/dmm



Regulated Power Supply

Voltage output: 0 to ± 12VDC, current 0-30A, line regulation 0.01% +2mV, load regulation 0.01% +mV, display no of digits 3, volts 3, amps 3.5, resolution 3V, 10A. AC input voltage 195-250V. Input 500W, 900VA.....

Product Code: DIDACTICLABAAE 39
(Regulated Power Supply)

http://www.didacticlabequipments.com/regulated-power-supply

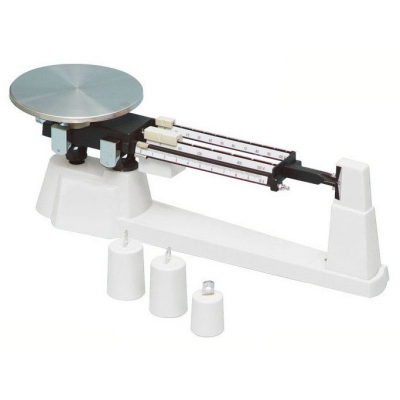

TP2611 Triple pro beam balance

Manufactrer: Ohaus With lab software. Capacity 2610g, readability 0.1g.....

Product Code: DIDACTICLABAAE 40
(TP2611 Triple pro beam balance)

http://www.didacticlabequipments.com/tp2611-triple-pro-beam-balance
