CAT NO: DIDACTICNMT0318

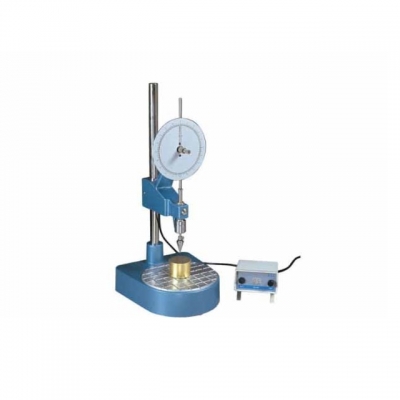

Cone penetrometer.
Cone penetrometer Use: Performing liquid limit and other penetration tests; for testing a wide variety of materials such as grease, petroleum, bitumen, tar, asphalt, wax, polish, food stuffs, rubber, cement, pharmaceutical creams and soils
Standard:
BS 1377, 1924-2, EN DD ENV 1997-2
Specifications:
Dial Indicator: 150 mm diameter graduated in 400 x 0.1 mm divisions. Indicator incorporates a friction/gear system.
Height: Adjustable using rapid integral clamping mechanism.
Cone Release: Manual.
Cone: 1 x 30°, 35 mm test cone included.
Base: Cast aluminium with adjustable levelling feet.
Weight: Net 6 kg (13.25 lbs.).
Test Gauge for checking the condition of the cone point.
Penetration test cup: 55 mm diam. x 40 mm deep with rim parallel to the flat base.
Penetration test cone: Stainless steel; 35 mm long with smooth surface at an angle of 30°.
Accessories (same standards as above)
Evaporating/mixing dish,
Ground glass plate 305x305x10mm (12x12x3/8in) with seamed edges,
24 aluminium containers 51x22mm (2in dia. x 0.9in H) with snug-fitting lids,
Wash pan
Wooden-handled spatula with stainless steel blade 19x102mm, WxL,
24 250ml polyethylene squeeze wash bottle
