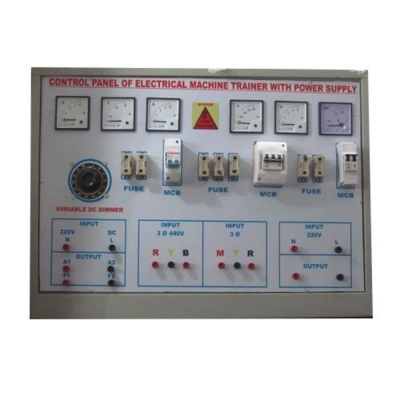

Electrical Machine Trainer

Electrical Machine Trainer

CAT NO: DIDACTICNEE1039

Electrical Machine Trainer Description and Tender Specification:

Electrical Machine Trainer.
The trainer consists of modules and panels containing meters, variable resistors, resistive load, capacitive load, inductive load, motors, generators, and other supporting equipment which are suitable to study various types of motors and generators according to their characteristics. The study of motors and generators covers the theory, design and characteristic of each motor and generator

Educational Objectives:
DC Machines Trainer Set
Prime Mover & Torque Measurement.
DC Motor Construction.
DC Generator Construction.
DC Shunt Motor Characteristic (starting, running, under load).
DC Series Motor Characteristic (starting, running, under load).
DC Compound Motor Characteristic (starting, running, under load).
DC Separately-Excited Shunt Generator Characteristic (running, under load).
DC Self-Excited Shunt Generator Characteristic (running, under load).
DC Compound Generator Characteristic (running, under load).
DC Motor Starting Method
Speed Control of DC Motor (requires optional power electronic module)

Single Phase AC Machines Trainer Set
Prime Mover & Torque Measurement
Split-Phase Induction Motor Construction
Split-Phase Induction Motor Characteristic (starting, running, under load).
Capacitor-Start Motor Characteristic (starting, running, under load).
Capacitor-Run Motor Characteristic (starting, running, under load).
Universal Motor Construction
Universal Motor Characteristic (starting, running, under load).

Three Phase AC Machines Trainer Set
Prime Mover & Torque Measurement
Wound-Rotor Induction Motor Construction
Wound-Rotor Induction Motor Characteristic (starting, running, under load).
Squirrel-Cage Induction Motor Characteristic (starting, running, under load).
Synchronous Motor Construction
Synchronous Motor Characteristic (starting, running, under load).
Three-Phase Alternator
Alternator Under Load
Alternator Synchronization
Alternator Power
The Three-Phase Induction Motor Starters
Rotary Frequency Converter

Description of modules:
AC/DC Main Power Supply
Mobile type Trainer Work Station
Universal Motor
DC Multifunction Machine
Single Phase Integrated Induction Motor
Three Phase Slip Ring Motor with Wound Rotor
3 Phase, 2 speed, pole changing induction motor with Dahlander Winding and squirrel cage rotor
3 Ph, Synchronous Machine with cylindrical rotor
Three Phase Isolator Switch
Manual Star Delta Switch
Pole Changing Switch/Selector Switch
Variable Resistive Load 1φ
Variable Resistive Load 3 φ
AC Ammeters
AC Voltmeters
DC Ammeters
DC Voltmeters
Single Phase/Three Phase Wattmeter
Single Phase/Three Phase Power Factor Meter
Electric Dynamometer
Synchronizing Switch with Lamps (Bright – dark method)
Test Leads
Machine protective cover
Shaft coupling
Experiment Manual
Storage Cabinet
Sample Training experimental manual to be provided during the bidding process to ensure all experiments are met

Support
