CAT NO: DIDACTICECE-LAB-0107

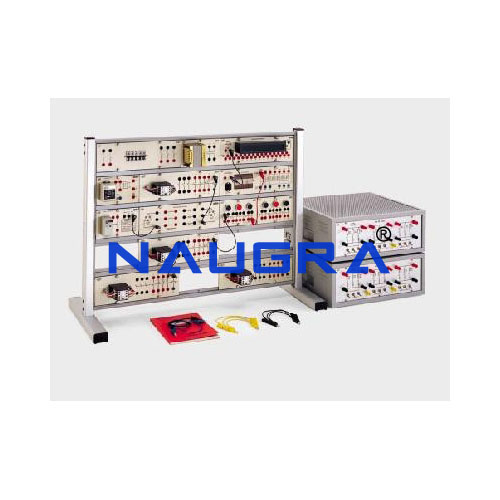

Electronically assisted industrial installations.
TRAINING PROGRAM
• Installation for gradual starting and stopping of a three-phase
induction motor with electronic static relay
• Installation for the automatic power factor improvement of a
three-phase user with three steps
• Installation for the supply of the three-phase user with phase
presence and phase sequence relay
• Automated installation for a production line with electronic
piece counter, proximity and crossing sensor
• Installation for level control with electronic control board and
level sensors
• Automation system via intelligent programmable logic relay
TECHNICAL SPECIFICATIONS
The set of modules to carry out electronically assisted industrial
installations consists of:
1 Module type AZ-190
1 Electronic relay for gradual static starting of asynchronous
three-phase induction motors 400 V –1 kW
1 Module type AZ-191a
1 Electronic control board for 3-step power factor improvement
capacitor
3 Modules type AZ-191b
1 3-Phase capacitive power factor improvement battery 2 mF,
1 3-phase capacitive power factor improvement battery 4 mF,
discharge resistors, inductances for transient limitation at the
insertion
1 Module type AZ-192
1 Electronic phase presence and sequence relay 400 V
1 Module type AZ-193
1 Digital electronic piece counter with proximity and crossing
sensor
1 Module type AZ-194
1 Electronic device for level control with level sensor
1 Module type AZ-195
1 Electronic message display; capacity 31 alphanumeric texts
1 Module type AZ-PLC
1 Intelligent programmable relay with six inputs and four
digital outputs
1 Module type AZ-10
5 Panel fuse-holders with sectionable fuses 4/6 A
1 Module type AZ-15
1 Transformer 115-230 / 12-24 V – 50-60 Hz – 72 VA
4 Modules type AZ-41
1 Electromagnetic contactor for industrial uses, 24-Vac coil
2 Modules type AZ-44
3 Pushbuttons for industrial uses
Supplied accessories
Set of 55 cables with Ø 4 mm safety pins
GENERAL POWER SUPPLY
3x400 V (3x230 V) / PE – 50-60 Hz
ACCESSORIES SUGGESTED TO SIMULATE AN ELECTRICAL
USER WHICH POWER FACTOR IS TO BE CORRECTED
1 Resistive load 230/400 V
1 Inductive load 230/400 V
THEORETICAL-EXPERIMENTAL HANDBOOKS
Application handbook with exercises
