A compact and sturdy instrument designed with latest technology for complete automatic dehydration and filtration of human, animal and plant’s tissues, up to final fixing in wax. Preprogrammable provision for dehydration cycle (user selectable) is a standard feature. Glass door with lock and key arrangement provided for easy viewing also prevents unauthorised tampering of timing cycle. Tissues are subjected to continuous agitation by rotating S.S. Tissue basket for thorough penetration of reagents. Provision for automatic adjustable delay start is a standard feature. Imported thermostat controls S.S. Wax bath temperature and maintains it throughout the process. Supplied complete with One S.S. Basket Rotor, One S.S. Tissue Basket, 24 Nos. S.S. Tissue Capsules, 10 Nos. One One litre capacity Glass Beakers, 11 Nos. Beaker Covers , 2 Nos. S.S. Wax Baths each fitted with reputed make Thermostat, 5 Nos. 24 hours calibrated metallic timing discs, and One notch plier to program timing disc Suitable to work on 220 V, single phase, 50 Hz, AC supply. Capacity :– 1 Litre. Spare Accessories :– Automatic wax bath. Beaker without lip. Basket Rotor which rotates the tissue basket slowly. Tissue capsule basket S.S. even perforation. Tissue capsule S.S. 28 × 28 × 9 mm with sliding cover. Tissue capsule S.S. 20 × 20 × 10 mm with sliding cover. Tissue capsule S.S. Circular, 36 mm dia. with auto press lid. Divider for Tissue capsule ‘s’ shape. Divider for Tissue capsule ‘v’ shape. Timing Disc calibrated for 24 hours.....
Product Code: DIDACTICLABNLE-Export-183001

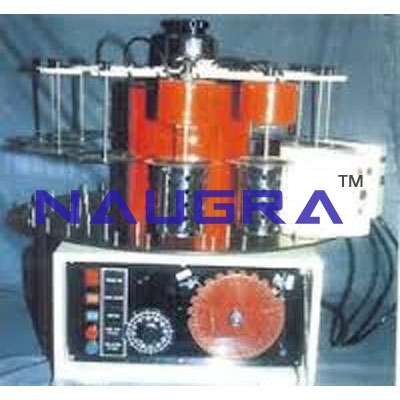

The latest model incorporates an automatic safety device and locking system besides other features. The safety device prevents the transfer of tissue from 10th stage to 11th stage or from 11th to 12th stage, in case the wax has not been melted properly due to power failure or any malfunctioning, thus protecting the unit and the tissues. The auto locking system checks the transfer of tissues from 12th to 1st stage to safeguard against the accidental reprocessing of the same and locks the machine. This lock can be undone by pressing of a push switch to prepare the unit for fresh use. Supplied complete with One S.S. Basket Rotor, One S.S. Tissue Basket, 24 Nos. S.S. Tissue Capsules, 10 Nos. Glass Beakers of 1 It. capacity each, 11 Nos. Beaker Covers, 2 Nos. S.S. Wax Baths, 5 Nos. 24 hrs. calibrated Timing Discs and One notch plier to program metallic timing discs. Suitable to work on 220 V, single phase, 50 Hz, AC supply. Capacity :– 1 Litre Spare Accessories :– 1. Automatic wax bath. 2. Beaker without lip. 3. Basket Rotor which rotates the tissue basket slowly. 4. Tissue capsule basket S.S. even perforation. 5. Tissue capsule S.S. 28 × 28 × 9 mm with sliding cover. 6. Tissue capsule S.S. 20 × 20 × 10 mm with sliding cover. 7. Tissue capsule S.S. Circular, 36 mm dia. with auto press lid. 8. Divider for Tissue capsule ‘s’ shape. 9. Divider for Tissue capsule ‘v’ shape. 10. Timing Disc calibrated for 24 hours.....
Product Code: DIDACTICLABNLE-Export-183002

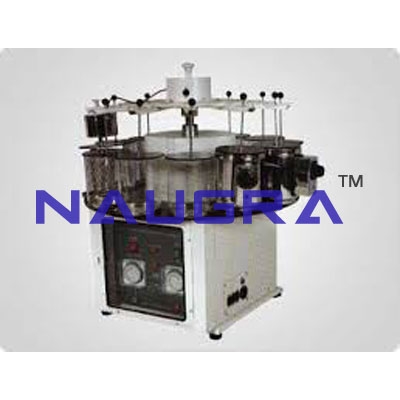

A This model is specially designed and immaculately profiled. It effectively combines aesthetic appeal with functional utility. Most effective feature of the machine is that only Basket Rotor along with the single bakelite beaker cover lifts up to change the position on to the next stage of the processing cycle. All the other beakers remain covered during each change of stage, thus keeping the loss of alcohol/reagents to a minimal level due to evaporation. Technical Data It progresses from its natural stage, through dehydration stages to its final embedding in wax, with 12 processing stages. Quite elaborate methods can easily be employed for preparing tissues for histology. The last two stages are thermostatically controlled wax baths. Programming the machine is very simple by cutting notches at desired timing intervals on the disc calibrated for 24 hrs. If used with single load head, 36 tissues can be processed for unequal immersion time and with double load head 72 tissues can be processed using the equal immersion time. The delay timer for 24 hours is also provided for weekend and routine delay starting. Both the baskets keep rotating to ensure better penetration. All the beakers remain covered throughout the process. On completion of the cycle the unit automatically gets locked up to prevent double processing and the tissues remain embedded in the wax bath, until removed. The equipment is supplied complete with 2 Nos. S.S. Basket Rotors 2 Nos. S.S. Baskets 24 Nos. S.S. Tissue capsules 10 Nos. Borosil Glass Beakers without lip 2 Nos. S.S. Wax Baths 5 Nos. 24 hrs. calibrated metallic timing disc One notch cutting plier Considering the requirement of different individual users, the Model is available in different Capacities. Beaker/Wax Bath Capacity : 1/2 litre, 1 litre, 2 Liters. Suitable to work on 220V, Single Phase 50 Hz, AC supply. Spare Accessories :– 1 Automatic wax bath. Special type 2 Basket Rotor which rotates the tissue basket slowly. 3 Tissue capsule basket S.S. even perforation. 4 Tissue capsule S.S. 28×28×9mm with sliding cover. 5 Tissue capsule S.S. 20×20×10mm with sliding cover. 6 Tissue capsule S.S. Circular, 36mm dia with auto press lid. 7 Divider for Tissue capsule ‘s’ shape. 8 Divider for Tissue capsule ‘v’ shape. 9 Beaker without lip. 10 Timing Disc calibrated for 24 hours.....
Product Code: DIDACTICLABNLE-Export-183003

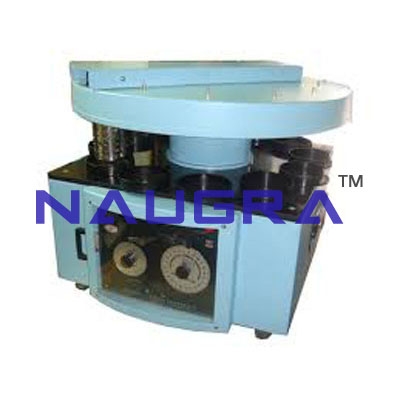

Automatic Tissue Processor Electra Model (Micro Processor Based) Under the guidance of eminent pathologists our R & D Division has developed yet another unique model of Tissue Processor having complete Programmer logic Controller for complete cycle. Timing & stage sequence, Wax bath temperature safety system etc. are all controlled/operated by feather touch key board with Digital Display. The entire unit looks very attractive with aesthetic appeal. The data is retained in case of power failure. Front panel comprises of the key board, digital display, control switch. The PID temperature controller have been used for controlling the wax bath temperature. Technical Data The 12 stage timing sequence may be programmed for each stage for duration between 1 minute to 9 hrs. 59 minute, in steps of 1 minute. Spare Accessories :– 1 Automatic Wax Bath specially designed for PID control and PT 100 sensor. It signal’s the machine in stage 9, prior to immersion in Wax and if wax is melted it automatically takes change from stage 9 to 10 and so on, but if wax is not melted due to some reasons, then machine signals “Wax not melted or temperature is not proper”. When wax is melted/wax temperature is attained then only the tissue basket is allowed to immerse or rotate in the wax bath. Thus 100% safety of precious tissue. 2 Basket Rotor which rotates the tissue basket slowly. 3 Tissue capsule basket S.S. even perforation. 4 Tissue capsule S.S. 28 × 28 × 9 mm with sliding cover. 5 Tissue capsule S.S. 20 × 20 × 10 mm with sliding cover. 6 Tissue capsule S.S. Circular, 36 mm dia. with auto press lid. 7 Divider for Tissue capsule ‘s’ shape. 8 Divider for Tissue capsule ‘v’ shape. 9 Beaker without lip.....
Product Code: DIDACTICLABNLE-Export-183004
A compact and sturdy instrument designed with latest technology for complete automatic dehydration and filtration of human, animal and plant’s tissues, up to final fixing in wax. Preprogrammable provision for dehydration cycle (user selectable) is a standard feature. Glass door with lock and key arrangement provided for easy viewing also prevents unauthorised tampering of timing cycle. Tissues are subjected to continuous agitation by rotating S.S. Tissue basket for thorough penetration of reagents. Provision for automatic adjustable delay start is a standard feature. Imported thermostat controls S.S. Wax bath temperature and maintains it throughout the process. Supplied complete with One S.S. Basket Rotor, One S.S. Tissue Basket, 24 Nos. S.S. Tissue Capsules, 10 Nos. One One litre capacity Glass Beakers, 11 Nos. Beaker Covers , 2 Nos. S.S. Wax Baths each fitted with reputed make Thermostat, 5 Nos. 24 hours calibrated metallic timing discs, and One notch plier to program timing disc. Suitable to work on 220 V, single phase, 50 Hz, AC supply. Capacity :– 1 Litre. Spare Accessories :– 1. Automatic wax bath. 2. Beaker without lip. 3. Basket Rotor which rotates the tissue basket slowly. 4. Tissue capsule basket S.S. even perforation. 5. Tissue capsule S.S. 28 × 28 × 9 mm with sliding cover. 6. Tissue capsule S.S. 20 × 20 × 10 mm with sliding cover. 7. Tissue capsule S.S. Circular, 36 mm dia. with auto press lid. 8. Divider for Tissue capsule ‘s’ shape. 9. Divider for Tissue capsule ‘v’ shape. 10. Timing Disc calibrated for 24 hours.....
Product Code: DIDACTICLABNLE-Export-183005
A compact and sturdy instrument designed with latest technology for complete automatic dehydration and filtration of human, animal and plant’s tissues, up to final fixing in wax. Preprogrammable provision for dehydration cycle (user selectable) is a standard feature. Glass door with lock and key arrangement provided for easy viewing also prevents unauthorised tampering of timing cycle. Tissues are subjected to continuous agitation by rotating S.S. Tissue basket for thorough penetration of reagents. Provision for automatic adjustable delay start is a standard feature. Imported thermostat controls S.S. Wax bath temperature and maintains it throughout the process. Supplied complete with One S.S. Basket Rotor, One S.S. Tissue Basket, 24 Nos. S.S. Tissue Capsules, 10 Nos. One One litre capacity Glass Beakers, 11 Nos. Beaker Covers , 2 Nos. S.S. Wax Baths each fitted with reputed make Thermostat, 5 Nos. 24 hours calibrated metallic timing discs, and One notch plier to program timing disc. Suitable to work on 220 V, single phase, 50 Hz, AC supply. Capacity :– 1 Litre. Spare Accessories :– Automatic wax bath. Beaker without lip. Basket Rotor which rotates the tissue basket slowly. Tissue capsule basket S.S. even perforation. Tissue capsule S.S. 28 × 28 × 9 mm with sliding cover. Tissue capsule S.S. 20 × 20 × 10 mm with sliding cover. Tissue capsule S.S. Circular, 36 mm dia. with auto press lid. Divider for Tissue capsule ‘s’ shape. Divider for Tissue capsule ‘v’ shape. Timing Disc calibrated for 24 hours.....
Product Code: DIDACTICLABNLE-Export-183006

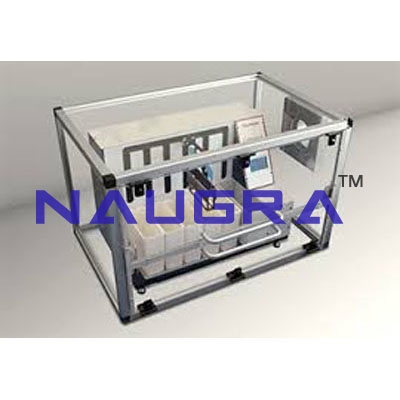

Manual Slide Staining procedure occupies considerable amount of technician’s time. To accelerate the process “Yorco Slide Staining Machine” was designed on modern principles for carrying out practically all Slide Staining techniques of Cytology & Histology. Yorco Slide Staining Machine — “12 Stations”, is compact and rugged equipment designed on latest technology for automatic staining of slides in different reagents according to pre programmed chronological user selectable cycles. Throughout the process the slides are shaken (Switch selectable) for effective staining in a slide carrier (Capacity 16 Slides). The last trough i.e. 12th Station is provided with an inlet and outlet to enable washing of the residual chemicals. The unit is supplied complete with 11 Glass Staining troughs, 1 trough with inlet and outlet, 1 Slide carrier, 5 Timing Discs for chronological programming calibrated for 60 minute and 1 notch cutting plier. Suitable for work on 220 V, single phase, 50 Hz, Ac supply.....
Product Code: DIDACTICLABNLE-Export-183007

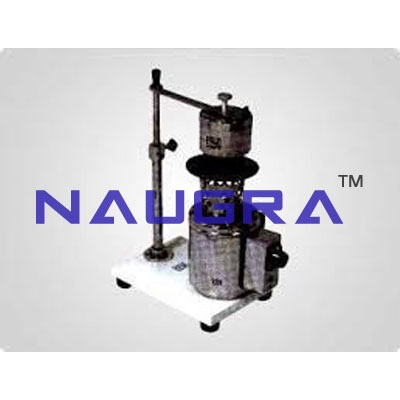

Compact model, suitable for use in small Laboratories. Supplied with One S.S. Basket Rotor One S.S. Tissue Basket One S.S. Wax Bath 24 Nos. S.S. Tissue Capsules 6 Nos. S-type Dividers. Suitable to work on 220 V, single phase, 50 Hz, Ac supply.....
Product Code: DIDACTICLABNLE-Export-183008

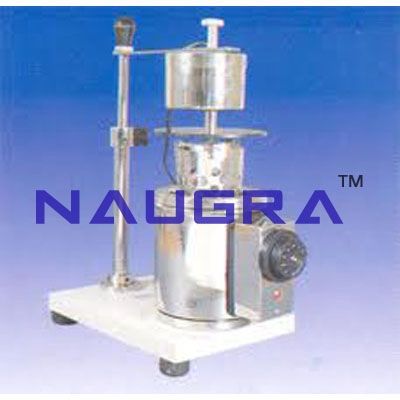

Suitable for use in Histology for decalcification of the bone tissue by electrolytic action for easy and precise sectioning. Through the combination of heat & fluid agitation, this instrument provide a method of decalcifying bone in preparation for sectioning & cellular staining. Decalcification is completed for significantly reduced time as compared to manual process, to ensure good staining characteristics. Nitric or Hydrochloric acid of not more than 5% concentrated is generally used. Basket movement is provided by an electric motor, which raises & lowers the basket and concurrently rotates it at slow speed for thorough solution action. A heating jacket vessel in the base of the support-stand heats the solution. An electric sunvic energy regulator/control box is fitted on the stand for easy operation. Suitable complete with plug & cord, the units is suitable for operation at 220 V, single phase, 50 Hz, AC supply.....
Product Code: DIDACTICLABNLE-Export-183009
