CAT NO: DIDACTICNMT0305

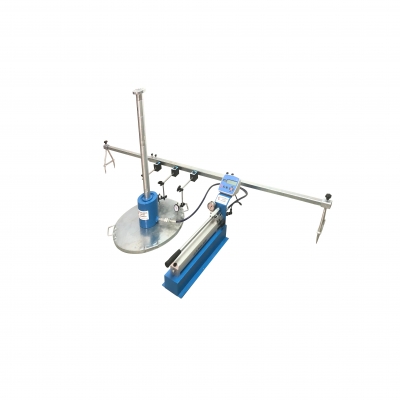

Plate Bearing Test Machine.
Plate bearing test machine Use: for estimating the bearing capacity of shallow foundations in situ and for the design of flexible pavement; also used for load tests of soil and flexible pavement components
Standard:
ASTM D 1194, D1195, D1196, BS 1377:9
Specifications:
Hydraulic jack with fixed pumping unit capacity: 0-500 kN. x 0.5 kN.
Pressure gauge and flexible metal pipe 5m long - 1No.
1 Special ball and socket arrangement between the jack and the bearing plate
16 Extension rod 12mm. dia x 25cm long
4 Magnetic base with female thread on top for holding extension rod.
4 Top end plate, 50mm, dia with male thread for fitting onto the extension rods and positioning the dial gauge plunger.
2 Column 15cm dia x 25cm long with flanges complete with four bolts and nuts
1 Column 15cm x 50cm long with flanges complete with four bolts and nuts.
1 Bridge support of welded steel angle construction, 5m, span and stands approximately 30cm, high, fitted with two quick release clamps, dial bracket
Plane M.S (Mild Steel) Plate 60 cms x 60cms sq. x 25mm thick
Plane M.S.Plate 45cms x 45cm.sq. x 25mm thick
Plane M.S.Plate 30cms x 30cm.sq. x 25mm thick
4 Dial Gauge 0.01mm x 25mm
Accessories (same standards as above)
Plane Mild Steel. (M.S) Plate 75cm x 25mm thick
Plane M.S.Plate 50cm x 25mm thick
Grooved M.S. Plate 60cm. x 60 cm. x 25mm thick
Grooved M.S. Plate 45cm x 45cm x 25mm thick
Grooved M.S. Plate 30 cm x 30cm x 25mm thick
Grooved M.S. Plate 75cm x 75cm x 25mm thick.
Flexible rubber pipe 1m. Length for the hydraulic jack in the place of metal pipe.
