PLC based Hydraulic Trainer

PLC based Hydraulic Trainer

CAT NO: DIDACTICNTE-11-12-0209

PLC based Hydraulic Trainer Description and Tender Specification:

PLC based Hydraulic Trainer.
Product Description:

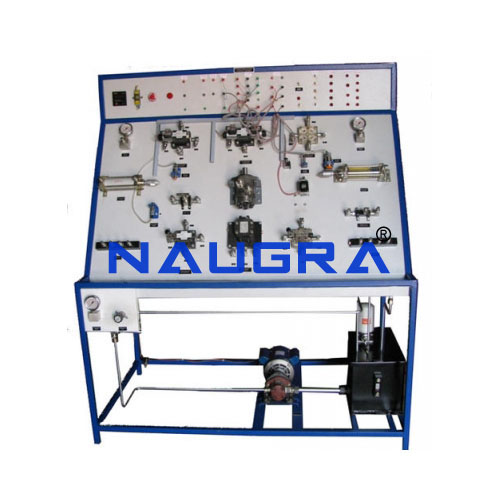

PLC Based Hydraulic Trainer is designed to demonstrate the operation of various Hydraulic Circuits with help of PLC Controller. The trainer used different electrically operated hydraulic valves & electronic sensors to demonstrate real-life applications of Hydraulic Power.
The trainer consists of a workstation panel for mounting of hydraulic components. The workstation is equipped with a power pack to supply oil under pressure to the components during operation.
The components supplied along with the trainer include Direction Control Valves (Solenoid Operated & Hand Lever Operated), Pressure Control Valves, Flow control valves, Check Valve, Linear Actuators, and Accumulators etc. Each hydraulic component like the valve, cylinder etc is mounted on a mounting plate & has adaptors for making connections using hoses.
The input the PLC comes from proximity switches & the PLC operates the hydraulic valve in programmed sequence.

Experimental Capabilities:
•    To study Hydraulic Power pack & its components.
•    To study the operation of different Hydraulic Direction Control Valves.
•    To study the operation of Hydraulic Check Valve.
•    To study the operation of Flow Control Valve.
•    To study the operation of Pressure Relief Valve. To study the operation of Linear Actuators.
•    To test following Hydraulic circuits
- Regenerative Circuit
- Speed Control of Linear Actuators
- Transverse & Feed Circuit
•    To test following PLC based circuits:
- Operation of Solenoid operated direction control valves
- Sequencing Circuit Clamping Circuit
- Counter Circuit
- Feed Back Control of Hydraulic Circuits
- Operation of Electrical Limit Switch

Specifications:
•    Hydraulic Power Pack: Gear Pump Electric Motor 1hp, 230 V AC, Oil Sump Tank – 20 Litres Oil Filter, Oil Level Indicator
•    Distribution Manifold - 4 Port Manifold, 2 Nos.
•    Pressure Relief Valve
•    Pressure Gauge
•    Direction Control Valves
- 4/2 Way Valve, Spring Return, Normally Closed
- 4/3 Way Valve, Spring Return, Normally Open
- 4/3 Way Valve, Manual Return, Normally Open
•    Sequence Valve
•    Pressure Sequence Valve
•    Non-Return Valve
•    Flow Control Valve
•    Hydraulic Cylinder - Double Acting Cylinder, 40 mm Bore x 100 mm Stroke, 2 Nos.
•    Solenoid Operated DC Valves
- 4/2 Single Solenoid Valve
- 4/3 Double Solenoid Valve - 2 Nos.
•    Proximity Switches
- Optical Type, PNP, 24 V DC - 2 Nos.
- Inductive Type, PNP, 24 V DC - 2 Nos.
•    Electrical Limit Switch
•    Power Supply: SMPS, 24 V DC, 5 A
•    PLC Controller: 8 DI, 6 DO, 24 V DC, Make – Allen Bradley / Siemens or equivalent
•    Hose Pipes: High-Pressure Hoses with Quick Release Couplings – 8 Nos.
•    Workstation: Made in M.S. Square Tubes & CR Sheets, Powder Coated
