CAT NO: DIDACTICNTE-11-12-0076

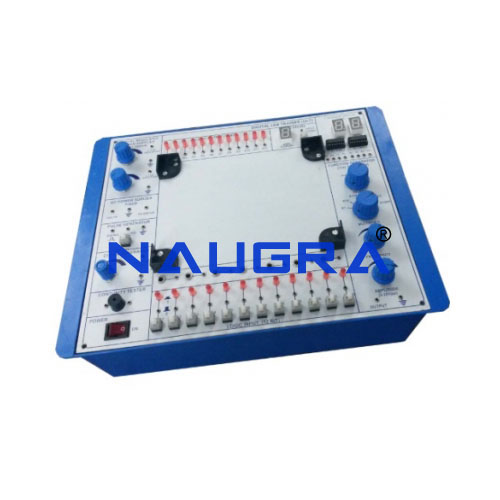

Digital Circuit Trainer.
Overview:
The DIGITAL LAB is intended for elementary as well as advance training of digital electronics. The digital lab covers regular digital circuits by solder-less interconnections on breadboard and as well as compatible with all optional modules through use of 2mm brass terminals and patch cords. Various clock generators, logic level input/output indicators and DC regulated power supplies etc. are in-built. The unit housed in attractive enclosure is supplied with mains cord, patch cords, Instruction manual and Component Set.
Experiments :
01. Logic gates operation
02. To verify De-morgan’s theorem with boolean logic equations
03. Binary to Gray code conversion
04. Gray code to Binary conversion
05. Binary to Excess-3 code conversion
06. Binary Adder and Subtractor
07. Binary Multiplier
08. EX-OR gate implementation
09. Application of EX-OR gate
10. Johnson Counter
11. To verify the dual nature of Logic Gates
12. Study of Flip-Flops RS, JK, D&T
13. Multiplexer and Demultiplexer
14. 4 Bit Binary up and down counter
15. Study of 8 to 3 Line Encoder
16. Study of 3 to 8 Line Decoder
17. Study of Shift Register (SIPO)
18. CMOS-TTL Interfacing
19. Study of Crystal oscillator
20. Study of pulse stretcher circuit
Techincal Discription:
Bread Board : Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie points and 4 Distribution Strips with 100 tie points each, totaling to 1680 tie points. (Size : 112mm x 170mm approx)
Regulated DC Power Supply : +5V at 1 Amp, -5V at 500 mA, 3 to +15V at 500mA, and -3 to -15V at 500 mA.
Pulse Generator : 1 Hz to 100 KHz in 6 Steps. Variable in between steps
- Amplitude : 3-15V (CMOS), 5V (TTL)
- Duty Cycle : 50% TTL / CMOS Output
Pulsar Switches : 1 independent buffered bounce free manual pulser (useful for freezing the action of each stage of the counter after every clock pulse)
Data Switches : 12 Nos. independent buffered logic level inputs to select High / Low TTL levels, each with a bi-color LED to indicate high / low status and termination.
Logic Indicators : 12 Nos. independent buffered logic level indicators for High / Low status indication with bi-color LED for digital outputs
Seven Segment Display : 2 Nos. BCD to Seven Segment Decoder / Driver IC with terminals
Logic Probe : Logic level indicator for TTL / CMOS
CMOS/TTL : Provided
Power : 230 V ± 10%, 50 Hz
Components Provided : ICs-4001/1, 4049/1,4069/1, 7400/1, 7402/1, 7404/1, 7406/1, 7408/2, 7410/2, 7411/3, 7420/2,7432/3, 7474/2,7476/2,7486/1.Resistors-330E/1,1K/2, 1K8/1,,15K/1, 47K/1.1M/2, Capacitors- 0.01mF/1, 0.1mF/1, 0.22 mF/1,Crystal-32.768MHz/1.
Accessories : Mains cord, Operating and Experimental manual, Red & Black patch cords (2mm with Pin) 10 each, Red & Black patch cord (Pin to Pin) 10 each. Wire 24/25 SWG. 1Meter each 5 Colour Instruction manual : Strongly supported by detailed operating instructions.
Ready to use modules
Basic Digital Logic Training Module.
• DECODER & ENCODER
• Up down counting module
• BI-directional and universal shift register module
• PARITY GENERATOR MODULE
• Half adders and full adders module
• Digital magnitude comparator circuit module
• Multiplexer. module
• Demultiplexer. module
• Digital to Analog conversion. Module
• Analog to Digital conversión module
