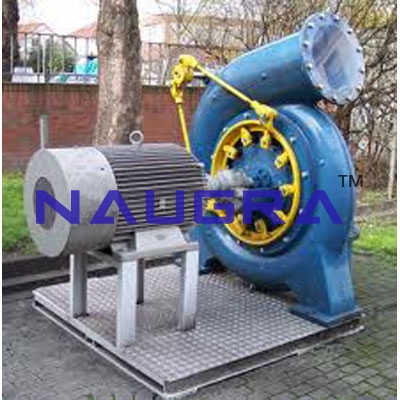

Francis Turbine- Engineering Lab Training Systems.
In this system spiral casing directs water evenly to the guide
blades. The model is properly constructed showing water Inlet blades,
guide, guide ring, tall race etc. Complete on metal base with
transparent plastic sheet cover. It is a non working model showing the
constructional details of the turbine.
