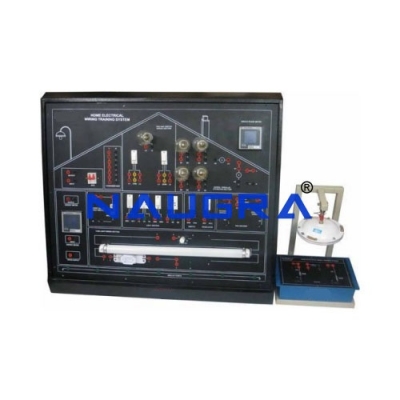

Home Automation Electrical Wiring Trainer

Home Automation Electrical Wiring Trainer

CAT NO: DIDACTICNTE-11-12-0204

Home Automation Electrical Wiring Trainer Description and Tender Specification:

Home Automation Electrical Wiring Trainer.
Product Description:
Home Electrical Wiring Training System is a product which is helpful for students to get familiar with home wiring circuits. This product provides a realistic training environment which is essential for every electrical engineering student and also for apprentice electrician. It consists of Single Phase Energy Meter, MCB, Controlling Switches, Tube Light with Choke, Regulated Switch, Ceiling Fan, etc. Good quality safe terminals and sockets are provided at appropriate places on board for power supply and load connections.

Features:
•    Easy diagrammatic representation of circuits
•    Energy Meter, Voltage and Current display on Graphical LCD (128x64)
•    Test points are provided to measure the voltages at different points
•    Designed after considering all safety standards
•    Low Cost Training System

Technical Specifications:
•    Supply Voltage : 230V AC ±10%, 50 Hz

Energy Meter Specifications
•    Meter Constant : 1600 impulses /KWh
•    Display Counter : 100 impulses /Kwh (On LCD)
•    Single Phase MCB : 6 A
•    Load specifications
•    Tube light : 20 Watt / 220-240 V
•    Ceiling Fan : 50 Watt / 220-240 V
•    Maximum Load Current : 4 Amp
•    Measurement Display : Graphical LCD (128x64)

Scope of Learning (To study the connection /measurement of):
•    Energy Meter and Consumer Unit
•    Voltage
•    Current
•    MCB wiring
•    Tube Light wiring
•    Two-Way Switch wiring
•    Short Circuit Fault
•    Switchboard
•    Ceiling Fan
•    Series-Parallel Operation on load
