Hydraulic Brake Chassis Trainer

Hydraulic Brake Chassis Trainer

CAT NO: DIDACTICNAE078

Hydraulic Brake Chassis Trainer Description and Tender Specification:

Hydraulic Brake Chassis Trainer.

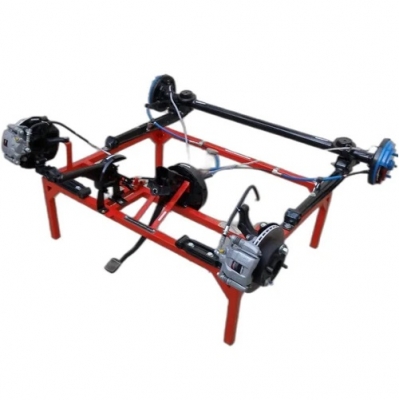

The Hydraulic Brake Chassis should be designed for student skills training in the operation, installation, maintenance and repair of Hydraulic Brake Systems. HYDRAULIC BRAKE CHASSIS TRAINER, AUTOMOTIVE LAB
The unit should consist of original automotive components which should be mounted into a simulated model Auto Chassis. The Chassis should include an integrated floor stand, made from powder coated electro galvanized steel that is mounted on wheels for mobility. A color coded schematic chart, under a lexon polycarbonate protective screen, of the brake system and circuit should also be mounted onto the trainer for reference

Specifications:
Components
The trainer should have two discs and two drum combination.
The components should be attached to the chassis in approximately the same position as found on an auto mobile.
All components should be fully functional and the chassis brake system could be operated as a self-contained unit.
An optional hydraulic line pressure gauge should be available to be installed into the brake lines so that the pressure of the hydraulic fluid could be observed.
Other components should consist of the brake pedal, brake light activating switch, master cylinder, one hand brake lever (for rear drum brakes), brake lights and all necessary hydraulic tubing and cabling.
Included:  Vacuum Pump for Power Brake boost & Hydraulic line pressure gauge.

Educational Objectives:
Basic theory;

The fundamentals of brake systems and brake system diagnosis and repair
Hand Brake Operation;

Understand how to operate the hand brake (parking brake) on the trainer
Understand the mechanical linkage in the brake system.
Foot Brake Operation;

Understand how the brake system works.
Understand how to operate the foot brake on the trainer.
Understand the hydraulic linkage in the brake system.
Drum Brake; able to set the brake shoe gap.
Checking The Drum Brake; able to check the drum brake with one wheel cylinder type.
Disc Brake; able to check the disc brake (without hand brake).
Pedal Free Play Setting; able to Check and Set the pedal free play.
Unit should come complete with operational manual and student job sheets which provide detailed exercises.
Sample Training experimental manual to be provided during the bidding process to ensure all experiments are met.
