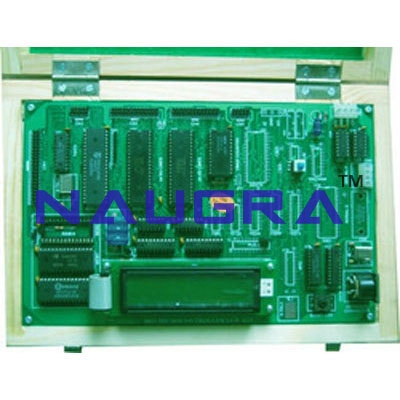

Microcontroller Trainer Kit (LCD) For Electrical Lab Training

Microcontroller Trainer Kit (LCD) For Electrical Lab Training

CAT NO: DIDACTICNLE-Export-081145

Microcontroller Trainer Kit (LCD) For Electrical Lab Training Description and Tender Specification:

Microcontroller Trainer Kit (LCD).
Is a single board microcontroller trainer kit based on 8 bit microcontroller, which is widely used to train engineers to develop on software/hardware for any industrial process & control. Kit has power-full monitor eprom, ram, i/o lines,timer/counter, serial, lcd display, keyboard for man to machine interface. Features 16k bytes of eprom with 32k bytes of battery backup ram   48 i/o lines, three channel timer/counter, pc serial interface using usart, 12 bit adc, dac, rtc. 5 20x2 lcd display with 101 ascii keyboard Power-full command like single stepping, break point, full clock execution, examine memory/ register                                           Uploading & downloading to and from pc in Windows98/xp/nt In-built power supply     Specifications Cpu operating@11. 0592mhz 32k user ram using 6264 with battery backup using nicd battery One socket is provided for ram expansion up to 64k 16k bytes of powerful monitor eprom using 27512         48 i/o lines using 2 nos. Of  brought at 26 pins frc connector to interface with ic-xx series                                                             Three channel timer/counter                                        20x2/40x2/20x4 alphanumeric lcd display with backlite      101 ascii keyboard interface using operating @ 12mhz On-board single line assembler & disassembler                           Two external interrupts int0 & int1 are available at 40 pin frc connector Rs-232c using rx/tx  Two modes of operation:      -Keyboard mode           -Serial mode Powerful commands like examine/ edit memory,examine/edit register, single stepping, execution,break point can be used through ascii keyboard or pc serial mode    Facility for downloading/uploading files from/to pc        All address, data, control & port lines are available on 40 pins & 20 pins frc connector            All ic’s are mounted on ic sockets Bare board tested glass epoxy smobc pcb is used In-built power supply of +5v/1. 5a, ±12v/250ma       Attractive wooden enclosures of light weight australian pine wood User's manual with sample programs 270mm x 185mm x 105mm (l x w x h) Weight 3 kgs Optional  On-board isp (in-system programming) facility                 Printer interface to interface with dot matrix printer Rs-232c interface using                                                                        On-board 12 bit adc using ad574                  On-board 8 bit dac using dac-0800 On-board real time clock
