CAT NO: DIDACTICNTE-11-12-0093

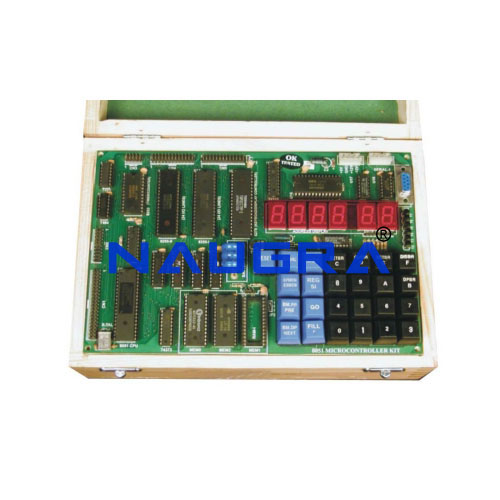

Microprocessor Trainer Board.
SPECIFICATIONS FOR
• – MC68000 CPU operating at 8 MHz.
• – 32 KB ROM with Monitor FIRMWARE-TUTOR.
• – EPROM expansion possible up to 64K maximum.
• – 16 KB static RAM.
• – RAM expansion possible up to 128KB.
• – Standard/Intelligent programming modes.
• – Two RS-232 channels with jumper selectable baud rates from 75 to 192000.
• – Five 8-bit parallel ports, 3 from 8255, 2 from 6821.
• – 68230 PI/T is used to provide an 8/16 bit parallel interface and a 24-bit timer. It is also used to provide a Centronics parallel printer port.
• – Seven segment display & hex keyboard.
• – On board single line Assembler and Disassembler.
• – Interrupt function.
• – MACSBUG/VERSABUG command subset for debug functions.
• – System address, data bus brought out on a 50 pin FRC connector and control bus brought on a 26 pin FRC connector for expansion and interfacing.
• – Optional Macro Cross Assembler avaible for use on IBM compatible PC to assemble and download user programs.
• – In-built power supply
• – User’s Manual, Cables & Connectors.
