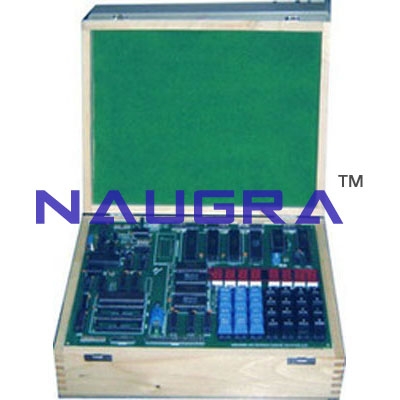

12.jpg "Microprocessor Trainer For Electrical Lab TrainingKit (LED)")
CAT NO: DIDACTICNLE-Export-081142
Microprocessor Trainer.
Is
a single board microprocessor trainer kit based on 16 bit
microprocessor, which is widely used to train engineers to develop
software/hardware for any industrial process & control. This Kit
consists of power-full monitor EPROM, RAM, I/O lines, timer/counter,
serial, seven segment display and keyboard for man to machine interface.
Features
6K Bytes of EPROM with 16K bytes of Battery Backup RAM
72 I/O Lines, Three Channel Timer/Counter, PC Serial Interface using USART, Interrupt Controller
Seven Segment Display with 28 Keys Hex Keypad
Power-full
Command like Single Stepping, Break Point, Full Clock Execution,
Examine Memory/ Register
Uploading & Downloading to and from PC in Windows98/XP/NT
In-Built Power Supply
Specifications
CPU operating at 2.5/5MHz
Processor can be replaced by Processor
On-board sockets provided to facilitate the use of Coprocessorand I/O Processor
16K bytes of RAM using two nos. of 6264 with Battery Backup expandable up to 256KB
16K bytes of powerful monitor EPROM using two nos. of 27512
72 I/O lines through 3 nos. of 8255 brought at 26 Pins FRC Connector to interface with IC-XX Series
16 bit Timer/Counter through 8253 brought out at 20 Pins FRC Connector
RS-232C
interface using brought out at 9 Pins DType Connector. On-board
Interrupt controller using brought out at 20 Pins FRC Connector
28 keys hexadecimal keyboard and eight seven segment display using
Two modes of operation:
-Keyboard Mode
-Serial Mode
Powerful
Commands like Examine/Edit Memory, Examine/Edit Register, Single
stepping, Execution, Block Move can be used through hex keyboard or PC
serial mode
Facility for Downloading/Uploading files from/to PC
All address, data & control lines are available on KXT Bus 50 pin FRC Connector to interface with SC-XX Series
All ICS are mounted on IC Sockets.
Bare board Tested Glass Epoxy SMOBC PCB is used
In-Built Power Supply of +5V/2A, ±12V/250mA
Attractive Wooden enclosures of Light weight Australian Pine Wood
User's Manual with sample programs
290mm x 210mm x 105mm (L x W x H)
Weight 3 Kgs
Optional
Printer interface to interface with dot matrix Printer
On-board EPROM Programmer.
