CAT NO: DIDACTICNLE-Export-081140

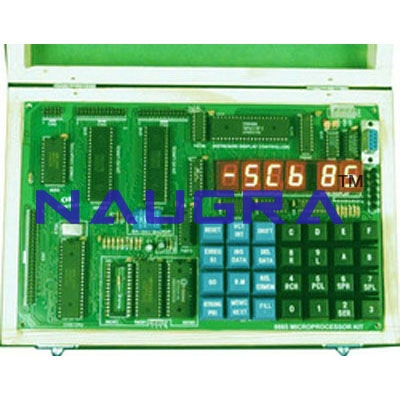

Microprocessor Trainer Kit (LED).
Is a single board microprocessor trainer kit
based on microprocessor, which is widely used to train engineers to
develop software/hardware for any industrial process & control. This
kit consists of power-full monitor EPROM, RAM, I/O lines,timer/counter,
serial, seven segment display and keyboard for man to machine
interface.
Features
8K Bytes of EPROM with 8K bytes of Battery Backup RAM
24 I/O Lines, Three Channel Timer/Counter, PC Serial Interface
Seven Segment Display with 28 Keys Hex Keypad.
Power-full Command like Single Stepping, Break Point, Full Clock Execution, Examine Memory/ Register
Uploading & Downloading to and from PC in
Windows98/XP/NT
In-Built Power Supply
Specifications
CPU operating at 6.144 Mhz
8K bytes of Powerful Monitor Program using 27512 EPROM
8K bytes of RAM using 6264 with Battery Backup using NICD Battery
On-board one memory expansion up to 56KB
Three Channel Timer/Counter using 8253 brought out at 10 Pins FRC Connector
24 I/O lines provided through 8255 brought out at 26 Pins
FRC Connector to interface with IC-XX Series
RS-232C interface through SID/SOD lines
Two mode of commands
- Hex Key pad Mode-
- Serial Mode
Six Digit Seven Segment Display using 8279
28Key’s Hex Keypad using 8279 Keyboard Display Controller.
Powerful
Commands like Examine/Edit Memory,Examine/Edit Register, Single
stepping, Execution, BlockMove, Insert Data, Delete Data can be used
through Hexkeyboard or PC serial mode
Facility for Downloading/Uploading files from/to PC.
All
address, data & control lines are available on KXT Bus 50 pin FRC
Connector to interface with SC-XX Series
All ICS are mounted on IC Sockets
Bare board Tested Glass Epoxy SMOBC PCB is used
In-Built Power Supply of +5V/1.5A, ±12V/250mA
Attractive Wooden enclosures of Light weight Australian Pine Wood
User's Manual with sample programs
270mm x 185mm x 105mm (L x W x H)
Weight 3 Kgs
Optional
PRINTER INTERFACE to interface with DOT MATRIX Printer
