CAT NO: DIDACTICNEX087

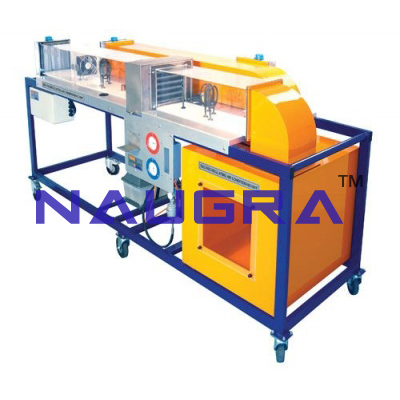

Recirculation Air Conditioning Trainer/pc.
Recirculation air conditioning trainer/pc differential pressure:
0...100Pa; temperature: 7x 0...100°C, 2x -100...200°C; humidity:
10...90% r.h.; pressure: 2x -1...15bar
Mode! of an air conditioner with recirculation and fresh air operation
Transparent duct with fan, humidifier, air cooler, heaters, flaps,
sensors; cross-section 155x155mm Chamber with humid (latent) and dry
(sensitive) heat source as coolingjoad Motorized, flaps for
recirculation and fresh air operation System diagram with signal lamp
Air-cooled condensing unit:
- power consumption: HOW at -10°C
- refrigerating capacity: 320W at 5/40°C Humidifier:
- heater power: 400W
Heater in air duct:
- heater power: 360W total (6 rods 400W each,
connected) heaters in chamber:
- heater power: 0...250W each, continuously adjustable Measuring
ranges:
- flow rate: 1.5...23.5ltr/h
- temperature: 0...100°C
- Humidity: 10...90% r.h. -power: 0...600W, CAD/CAM LABORATORY EQUIPMENTS, educational cnc milling machines manufacturers, educational cnc LATHE machines manufacturers, Strength of Material Testing equipment supplier, mechanical engineering laboratory equipments suppliers, soil, bitumen, concrete testing, civil engineering laboratory equipments suppliers
