CAT NO: DIDACTICNLE-Export-081108

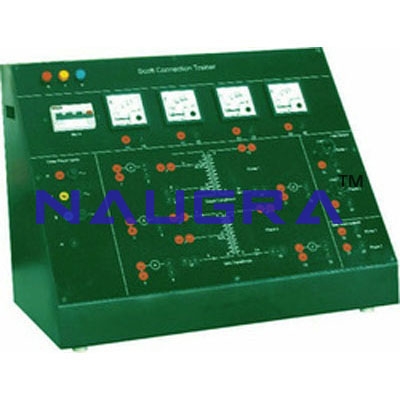

Scott Connection Trainer.
Scott connection trainer is an vital training system for the electrical
laboratories. It provides comprehensive learning of three phase to two
phase conversion in a very simple manner. Study and Analyze the
operation of teaser transformer and main transformer. Students can
perform standalone operation and observe the two phase step down
waveforms on oscilloscope, which will have 90° phase displacement with
each other.
The training system is engineered to be simple.
Features :
Stand alone operation
Exclusive and attractive designed panel
Designed by considering all the safety precautions
Main and Teaser Transformers are shown separately
On board high quality meters
Two phase step down outputs available for waveforms observation on oscilloscope
Provided with an extensive e-manual
Two years warranty
Technical Specifications :
Input : 415 V AC ±10%, 50 Hz
Main Transformer
Input Winding : 0 - 200 V (50%) ±10%, 50 Hz
: 0 - 200 V (50%) ±10%, 50 Hz
Output Winding : 0 - 230 V ±10%, 50 Hz
Teaser Transformer
Input Winding : 0 - 115.6 V (28.9%) ±10%, 50 Hz
: 346.4 V (86.6%) ±10%, 50 Hz
: 400 V ±10%, 50 Hz
Output Winding : 0 - 230 V ±10%, 50 Hz
Step down Transformers (2Nos.)
Input Winding : 0 - 230 V ±10%, 50Hz
Output Winding : 0 - 18 V ±10%, 50Hz
Meters Used
Voltmeter (MI) : 500 V (2 Nos.)
Ammeter (MI) : 1 A (2 Nos.)
Dimensions (mm) : W 600 ´ D 350 ´
Scope of Learning
Study of Teaser Transformer
Study of Scott Connection (Three Phase to Two Phase Conversion)
