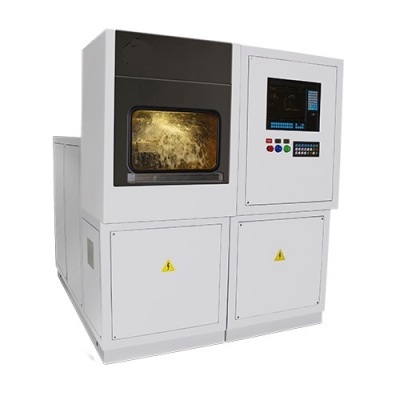

The Semi-Automatic Electrochemical Copying-Broaching Device.
The semi-automatic electro chemical copying-broaching device The semi-automatic electro chemical copying-broaching device is designed for shapig in the work parts from structural, instrumental, corrosion-proof, heat-resistant, magnetic steels and alloys.
Table operational surface size, mm -300x200
Operational chamber size, mm -700x440x600
Distance between the table operational surface and electrode holder end, mm -100
Table movement, mm:- 200
Processing area, sq. mm: -4200
Processing output, cu. mm/min:- 1200
Electrode copying accuracy, mm, in the range: +0.01
Table feed rate, mm/min, operational:0.01-9.99
-"-accelerated:340
Electrode tool vibration frequency, Hz:50
Electrode tool vibration magnitude, Hz - 0.32
Electrolyte feeding pump, type: vortex
Output, m/hour (l/min):5.1 (85)
Head, nominal, mPa (kg/cm):0.5 (5)
Electrolyte volume in the tab, cu. M -0,85
Machine technological current source: Current type: pulse, Manufacturing current: pulse width, ms 1-10 Manufacturing current: pulse value,maximum, A - 4000 Voltage steps number:- 3 Voltage rms value, V – 12:18:24
Power supply: Current type- alternating, three-phase
Frequency, Hz -50
Voltage, V -380
Maximum consumed powerwhile the largestprocessing area, kW 40
Overall dimensions (LxWxH), mm -1650x1850x2040
