CAT NO: DIDACTICNEE1059

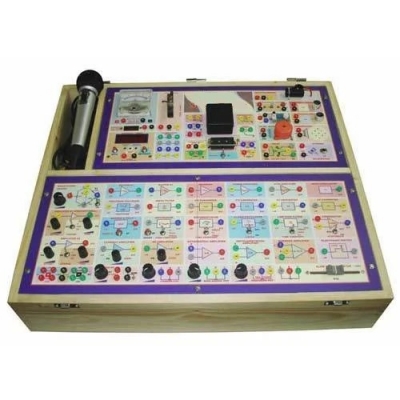

Transducer and Instrumentation Kit.
Fundamental concepts and applications of sensors and transducers.
The trainer should has many experimental modules covering a wide range various type of sensors and transducers including standard signals processing methods, which are required by many applications.
The trainer should consists of base station into which a number of experiment modules can be fitted.
A variety of modules should be available which extensively covers the topics of sensors and transducer.
Specification
Base Station
The student base station serves as platform for carrying out the experiments.
The experiment modules should be inserted into the base station and inter-connected to the services provided through 2mm sockets and test leads.
The base station should provide for all the primary needs of the experiment modules and includes a variety of components such as the following:
Converter: 8 bit ADC/DAC
Switches: 8 SPDT switches
Amplifier: Instrument amplifier
Potentiometer: 2 Potentiometer
Relays: Two 12VDC relays
DC Fixed Power: -5V, 0, +5V, -12V, 0, +12V
DC Variable Power: 0 – 15V
DC Power Overload Indicator
Input Voltage: 220/240 VAC, 1 phase, 50Hz
AC fuse and main power switch
Experiment Modules
Specialized Electronics Circuits
This should be consists of a set of several boards that covers aspects of specialized electronics circuits that are commonly required for the study of sensors and transducers. Topics and circuits should covered include Digital to Analog conversion, Analog to Digital conversion, Voltage to Frequency Conversion, Frequency to Voltage Conversion, Bridge Circuits, various filter circuits, signal amplifiers, signal conditioning linearization.
Temperature Sensor Module
Controlled temperature device with precision integrated-circuit temperature sensor which can be used to demonstrate aspects of temperature control as well as provide for a regulated load device for Temperature module.
Proximity Sensor Module
Rotational speed module with inductive proximity sensor which can be used to demonstrate aspect of speed control for rotational motion system
Pressure Measurement Module
This module covers the main methods of measuring for pressure in various applications.
Piezo resistor sensor which can use to read pressure of liquids and gasses
Photo Electric Sensors Module
These cover a wide range of devices that can be used for many applications. General photo/light sensor module which can be used to demonstrate aspects of light intensity control for automatic lighting system
Position and Displacement Measurement Modules
The modules are offered which are commonly used to detect position and displacement of objects. LVDT Transducer Module which can be use to indicate the linear position of a moving object
Air Flow Sensors Modules
These modules contain a variety of units that are common to the measurement of air flow.
Consist of Differential Pressure Module and Paddle Wheel type Flow meter Module.
Sound Sensors Modules
The modules cover the principles in the reception of sound waves and their signal processes.
Consist of Condenser Microphone and Dynamic Microphone.
