CAT NO: DIDACTICNTE-11-12-0192

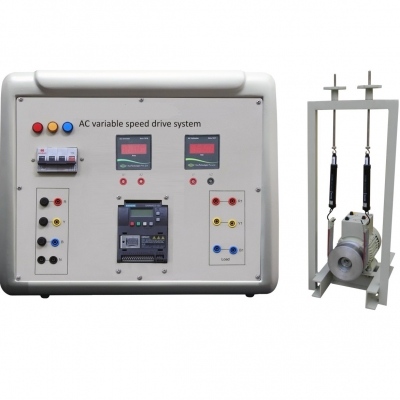

Variable speed Motor Trainer.
Easy and safe wiring by students due to 4mm sturdy shrouded banana patch cords and shrouded socket arrangement for high voltage circuits.
Facilitates easy learning about operative characteristics of ubiquitous squirrel cage induction motor.
Each panel has metal powder coated sturdy enclosure, and colorful screw less overlays showing circuit diagram & its connection tag numbers for easy understanding and connections.
Set of Instructor Guide & Student Workbook.
TECHNICAL SPECIFICATIONS
Aluminum profile flat demo panel system (table top), carrying various high voltage components housed in plastic enclosures (panel) to minimize shock
1 sq cage induction Motor 0.5hp,
1fMCBs of 4A/1.6A -
IGBT Controlled AC Drive panel
Input voltage: 230VAC. 50Hz 2) Output voltage: 3 phase 200 to 230VAC 3) Range (Frequency Control) : 0.1 Hz to 100 (400)Hz 4) Control Mode :Sine Wave PWM 5) Capacity : 1/2 HP (2 HP optional) 6) With Reverse And Forward Direction 7) Mech: single width for ½ HP & double length for 2HP
Motor
3 phase squirrel cage induction motor, ½ HP (2 HP optional), 4 pole, 1500RPM, 6 terminal (delta 220Vac/star 440Vac) motor with Hand held Tachometer for speed measurement
