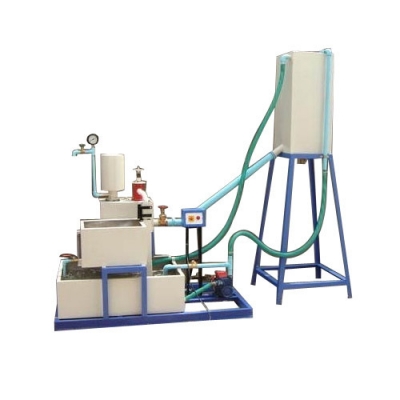

Hydraulic Ram Test Rig
Owing to our expertise and the assistance of dedicated workforce, we have been able to offer optimum quality Hydraulic Ram Test Rig
at an affordable market price. These products are precisely
manufactured under strict supervision using best quality metal. Known
for unmatched quality, high efficiency and hassle-free operations, these
products are highly demanded among the industrial clients.
Description:
Hydraulic
Ram is used for pumping small quantity of water at high head, when
large quantity of water at small head is available. It operates on the
principle that if flowing water is suddenly brought to rest in a long
pipe, a phenomena known as water hammer occurs, wherein a pressure wave
travels along the pipe. This principle is used in the Hydraulic Ram to
pump water. The set-up consists of a box incorporating pulse and
non-return valves and a supply reservoir on a stand which is fed by the
overhead tank. An air vessel above the valve chamber smoothes cyclic
fluctuations from the Ram delivery. Different pressure may be applied to
the pulse valve to change the closing pressure and hence the operating
characteristic.
Experimentation:
To find out discharge of useful water and waste water
To find out the efficiency of the Hydraulic ram
Utilities required:
Electric supply
Provide 230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing. (Neutral – Earth voltage less than 5 VAC.),
5A, three pin socket with switch for pump.
Water supply
Tap water connection ” BSP
Distilled water @ 250 liters (optional)
Technical Specifications:
Ram: Supply Head 1.0 m, Delivery Head 4 m (Max.)
Water Circulation: FHP Pump, Crompton make.
Sump Tank: Capacity 140 Ltrs. (approx.)
Overhead Tank: Capacity 50 Ltrs. (approx.)
Air Vessel: Suitable Capacity
Flow Measurement: Using Measuring Tank & Electronic Stop Watch for waste water and for useful water
Pressure Gauge: Bourdon type
Instruction Manual: An ENGLISH instruction manual will be provided along with the Apparatus
.
