Reciprocating Pump Test Rig

Reciprocating Pump Test Rig

CAT NO: DIDACTICNLE-Export-205122

Reciprocating Pump Test Rig Description and Tender Specification:

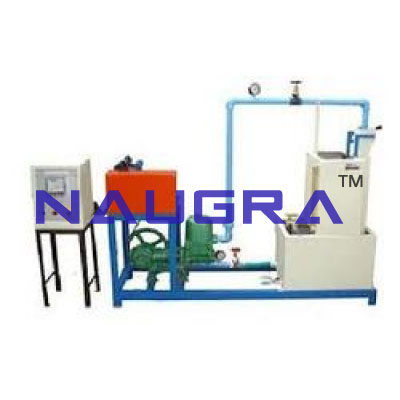

Reciprocating Pump Test Rig RECIPROCATING PUMP TEST RIG (VARIABLE SPEED)  DESCRIPTION :  The present Reciprocating Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Double acting, Single Cylinder Reciprocating Pump coupled with a DC Motor Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of water is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.  EXPERIMENTATION:  To determine total head, overall efficiency, pump efficiency and volumetric efficiency of the reciprocating pump.   To plot Graph: Head vs Discharge Pump efficiency vs Discharge.  UTILITIES REQUIRED :    Electricity Supply :                   Single Phase, 220 V AC, 50 Hz, 5-15amp                                              combined socket with earth connection.   Water Supply   Drain required.   Floor Area Required: 1.5 m x 0.75 m  TECHNICAL DETAILS :   Pump                           :              Double acting, Single Cylinder. Capacity 1 HP                                                                                                  Speed 250 RPM (max.) and Head 5  kg/cm2       Drive                            :              1HP DC Motor with Thyristor controlled DC Drive for variable speed   Sump Tank                  :               Material Stainless Steel, Capacity 65 Ltrs.   Flow Measurement      :               Using Measuring Tank (made of stainless steel,                                                           Capacity 40 Ltrs.)and Electronic Stop Watch   Pressure Gauge          :               Bourdon type.   RPM measurement     :               Digital RPM Indicator with Proximity sensor.   Energy measurement  :               Electronic Energy meter, L&T make.   Tanks will be made of Stainless Steel  .
