CAT NO: DIDACTICNTE-11-12-0187

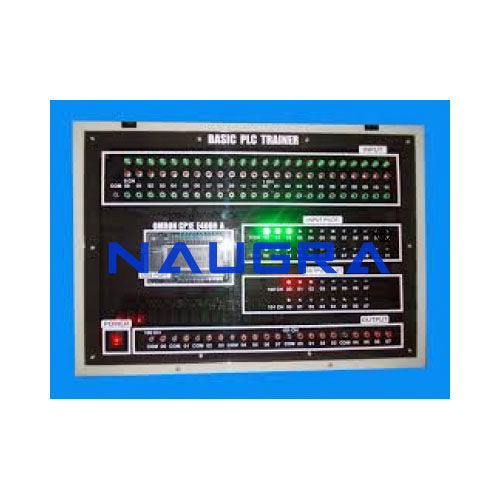

PLC Trainer with all accessories.
MAIN UNIT: Microprocessor based PLC System with built in 8 Digital input line, with RS232 /Serial Interface of Industrial grade PLC will be used. The system comes with Ladder programming and communication software compatible with IBM PC. All the inputs and outputs are brought out to the panels for the ease of studying various Static application panels and also Sample Ladder programs are supplied for better understanding of PLC. The Panel is built with necessary Power supply
required for the PLC and the Simulation Panels. The system can be used for any control applications, which come across in Industrial Environment by writing Logic program as per requirement.
DISTRIBUTOR PANEL :
For Easy connection of input/output of PLC to the field / Static application through use of patch cords
For Digital Input & Digital Output :
16 digital input and 16 digital output
4mm socket for Digital Input : 16nos.
SIMULATION + EXTENSION PANEL :
For simulation of Digital I/Os and extension for inputs and outputs for connecting the same I/P or O/P at different points.
Digital I/P consists of Toggle switches : 16 nos.,
Pushbuttons : 4 nos. ; 4mm Socket: 4 nos.
Digital outputs consists of 24 V DC LED : 16 nos.
SAILENT FEATURES :
Various Static application dependent programs to be interfaced with PLC
Learning and Troubleshooting Skills through front panel
Study of Ladder Diagram
Dynamic Ladder display on Personal Computer
Light weight study panel
Sufficient Courseware: Literature for Various Static application dependent programs Instructor’s Guide, Technical Reference.
SPECIFICATION OF PLC :
Make SIEMENS/ABB/MICROLOGIX/GE OR EQUIVALENT MAKE
DI 14 Built in
DO 10 Built in
PC Interface RS 232/RS485 Cable
Sufficient Courseware: Literature for Various Static application dependent programs Instructor’s Guide, Technical Reference.
