Universal IC Tester For Electrical Lab Training

Universal IC Tester For Electrical Lab Training

CAT NO: DIDACTICNLE-Export-083002

Universal IC Tester For Electrical Lab Training Description and Tender Specification:

Universal IC Tester For Electrical Lab Training.

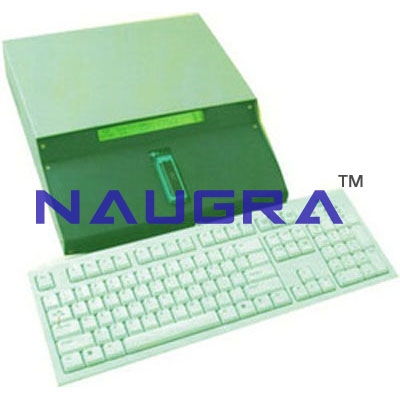

One System Many Functions.- IC tester- word processor- mC development system- simple cable tester It Can test gates, buffers and decoder ICs in-circuit. IC test clip is optionally provided with which the IC could be tested without removing from board. A maximum of six logic inputs could be driven and three logic outputs could be monitored in-circuit testing mode (F9) It is the latest microcntroller based universal IC tester. It functionally tests a wide variety of Analog / Linear ICs including Microprocessor, Microcntrollers, EPROMs, Peripheral devices apart from 74 series of TTL ICs and 40/45 series of CMOS ICs.   Features:    No personality cards / reference IC / IC Data required.  ONE mode to test IC Once  CON Mode to test IC continuously  STEP mode to test step by step  Buzzer to indicate bad ICs  Reliable PC Keyboard to enter IC number and commands  Potential free 40 pin ZIF socket for easy insertion of IC under test  Protection against wrong insertion  Simple cable tester with learn facility.  Alphanumeric 40 x 2 backlit LCD for displaying messages   Interface expansion of IC Test Library  Built in self Test to test hardware, display, Keyboard and buzzer  Built in Word processor mode which converts system into an Electronic typewrite Indigenously developed universal pin driver technology used Help message through F1 key   It has facility for expansion of test library through  If the data sheets of the new IC is furnished along with sample ICs, we could develp the testing program if the IC is testable. After downloading this test program in the tester, the new IC could be tested.   Technical Specifications: Test Range Digital Analog/Linear ICs 6, 8, 14, 18, 20, 24, 28 & 40 Pin in dual in line (DIP) package Socket 40 Pin Universal type ZIF (Zero Insertion Force) Display 40 x 2 Backlit alphanumeric LCD display Keyboard External IBM-PC PS/2 keyboard Voltage 230V, AC 50Hz ± 10% Enclosure Sheet Metal cabinet with powder coating and Engraving Dimensions 34 x 31 x 9 cm Weight 5.5 Kgs. Approximately
